Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | EB5-600/6000 |
Minimum Order Quantity: | 1 sets |
Price: | 40000-60000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Length: | 6000mm | Bendingthickness: | 16mm |
---|---|---|---|
Controller: | DELEM | Pressure: | 6000kn |
Warranty: | One Year | Cylinder Stroke: | 320mm |
High Light: | 600t Cnc Hydraulic Press Brake,6000 Cnc Hydraulic Press Brake,Cnc Hydraulic Press Brake Bender |

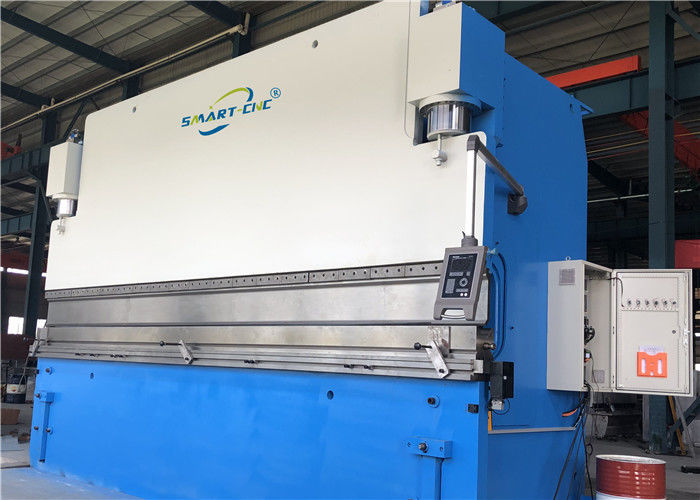

Cnc Hydraulic Press Brake Bender,Heavy Duty CNC 600T/6000 High Precision Bending Machine
Advanced configuration, high precision and high efficiency CNC hydraulic press brake.
Equipped with Delem or Cybelec control system, Italian raster displayer, Germany Hoerbiger hydraulic system, Japanese servomotor are all importing products.
Adopting reliable electro-hydraulic electro-hydraulic proportional synchronization servo and its parallelism precision could reach 0.01mm. it can support eccectric load.
Ram stroke (Y1, Y2) and back gauge(X1, X2, R1, R2, Z1, Z2)are controlled by controller.
Back gauge is adopted ball screw and rolling guide way, the repeat positioning precision of X is very high and act smartly.
A set of standard tools is provided with each machine.
ABB main motor and Japanese sumitomo pump are optional.
The machine enjoys high accuracy and high strength and good rigidity
1. High Quality Components & System
a. Motor: Siemens, Germany
b. Main Electric Components: Schneider, French
c. Seal in the Cylinders: NOK, Japan
d. Valve: Atos, Italy
e. Pump: Sumitomo, Japan
f. Wiring Terminal Block: WEIDMULLER, Germany
g. NC Control System: Estun E21, China
2. Cost Effective
HPB SERIES Hydraulic Press Brake With Very good price/performance ratio
Various HPB SERIES Hydraulic Hydraulic Press Brake capacity from 30T to 4000T with width from 1,600mm to 20,000mm to meet your requirement.
3. Stable Performance & Reliable Quality
HPB Series Hydraulic Hydraulic Press Brake use hydraulic transmission. low noise, reliable performance.
4. Simple Operation
The operation of Hydraulic Hydraulic Press Brake is controlled by nc control system.
No | Name | Unit | Parameter | |
1 | Nominal pressure | KN | 6000 | |
2 | Working table and tooling length | mm | 6000 | |
3 | Center distance between uprights | mm | 4800 | |
4 | Throat depth | mm | 500 | |
5 | Ram stroke | mm | 320 | |
6 | Max. open height | mm | 650 | |
7 | Main motor | power | KW | 45 |
8 | CNC system | Type | DA53T | |
CNC axes | axis | Y1,Y2,X | ||
Quantity | 1 | |||
9 | Overall dim.(L×W×H) | Length | mm | 6300 |
Width | mm | 4100 | ||
Height | mm | 4500 | ||
10 | Net Weight | KGS | 55,000 |
