Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Model Number: | PB6-110/3100 |
Minimum Order Quantity: | 1 sets |
Price: | 9000-15000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Certification: | Ce,ISO9001 | Power: | CNC |
---|---|---|---|
Material / Metal Processed: | Stainless Steel | Raw Material: | Steel Plate/Sheet |
Warranty: | 3 Years | Color: | Customized |
Length Of Working Table (mm): | 2200-8000 | Nominal Pressure (kn): | 63/100/120 |
Name: | Hydraulic Press Brake | Control System: | E21/DA52S/Cyb Touch8 |
Throat Depth: | 200-500 Mm | Dimension: | 3300x2200x2200 |
Voltage: | 220V/380V/415V/440V/customized | Main Motor: | Siemens |
High Light: | CNC Hydraulic Press Brake Machine,200 Ton Hydraulic Press Brake Machine,Stainless Steel CNC Hydraulic Press Brake |

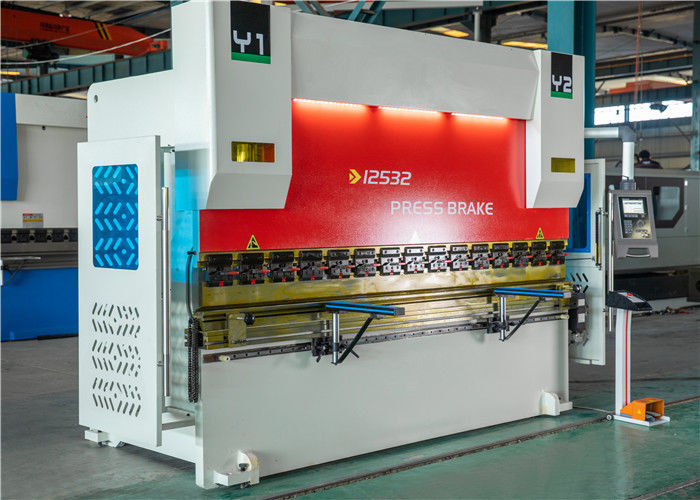

Hydraulic Press Brake Machine,High Quality Cnc Bending Machine Mesin Bending Press Brake 200 Ton
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4. Travel limit protection, full machine guarding with safety interlocker.
5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6. The stroke and distance of the back gauge is adjusted by the motor.
7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.
Type
|
Nominal Force
|
Worktable Length
|
Poles Distance
|
Throat Depth
|
Stroke
|
Max Open
|
Power
|
Dimension
|
|
(KN)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(KW)
|
L*W*H(mm)
|
30T/1600
|
300
|
1600
|
1280
|
200
|
80
|
285
|
3
|
1600*1000*1600
|
35T/2000
|
350
|
2000
|
1480
|
200
|
80
|
285
|
4
|
2000*1100*1800
|
40T/2200
|
400
|
2200
|
1850
|
230
|
100
|
320
|
5.5
|
2200*1200*1910
|
40T/2500
|
400
|
2500
|
1850
|
230
|
100
|
320
|
5.5
|
2500*1200*1910
|
50T/2500
|
500
|
2500
|
1850
|
230
|
100
|
320
|
5.5
|
2500*1200*2000
|
63T/2500
|
630
|
2500
|
1900
|
250
|
120
|
320
|
5.5
|
2500*1300*2210
|
63T/3200
|
630
|
3200
|
2500
|
250
|
120
|
320
|
5.5
|
3200*1300*2210
|
80T/2500
|
800
|
2500
|
1900
|
300
|
120
|
320
|
7.5
|
2500*1400*2300
|
80T/3200
|
800
|
3200
|
2500
|
320
|
120
|
350
|
7.5
|
3200*1500*2300
|
80T/4000
|
800
|
4000
|
3000
|
320
|
120
|
350
|
7.5
|
4000*1500*2400
|
100T/2500
|
1000
|
2500
|
1900
|
320
|
160
|
320
|
7.5
|
2500*1600*2400
|
100T/3200
|
1000
|
3200
|
2500
|
320
|
160
|
370
|
7.5
|
3200*1600*2600
|
100T/4000
|
1000
|
4000
|
3000
|
320
|
160
|
370
|
7.5
|
4000*1600*2700
|
125T/3200
|
1250
|
3200
|
2500
|
320
|
160
|
370
|
7.5
|
3200*1600*2700
|
125T/4000
|
1250
|
4000
|
3000
|
320
|
160
|
370
|
7.5
|
4000*1600*2700
|
160T/3200
|
1600
|
3200
|
2500
|
320
|
200
|
460
|
11
|
3200*1700*2700
|
160T/4000
|
1600
|
4000
|
3000
|
320
|
200
|
460
|
11
|
4000*1700*2800
|
160T/5000
|
1600
|
5000
|
4000
|
320
|
200
|
460
|
11
|
5000*1900*3100
|
160T/6000
|
1600
|
6000
|
4940
|
320
|
200
|
460
|
11
|
6000*1900*3200
|
200T/3200
|
2000
|
3200
|
2500
|
320
|
200
|
460
|
11
|
3200*1950*2800
|
200T/4000
|
2000
|
4000
|
3000
|
320
|
200
|
460
|
11
|
4000*1950*2800
|
200T/5000
|
2000
|
5000
|
4000
|
320
|
200
|
460
|
11
|
5000*1950*3000
|
200T/6000
|
2000
|
6000
|
5000
|
320
|
200
|
460
|
11
|
6000*1950*3300
|
250T/3200
|
2500
|
3200
|
2500
|
400
|
250
|
460
|
18.5
|
3200*2000*3200
|
250T/4000
|
2500
|
4000
|
3000
|
400
|
250
|
590
|
18.5
|
4000*2000*3400
|
250T/5000
|
2500
|
5000
|
4000
|
400
|
250
|
590
|
18.5
|
5000*2000*3400
|
250T/6000
|
2500
|
6000
|
5000
|
400
|
250
|
590
|
18.5
|
6000*2000*3400
|
300T/5000
|
3000
|
5000
|
4000
|
400
|
250
|
570
|
22
|
5100*2600*4000
|
300T/6000
|
3000
|
6000
|
5000
|
400
|
250
|
570
|
22
|
6100*2600*4200
|
300T/7000
|
3000
|
7000
|
5620
|
400
|
250
|
570
|
22
|
7100*2600*4400
|
320T/7000
|
3200
|
7000
|
5620
|
400
|
250
|
570
|
22
|
7100*2600*4400
|
350T/6000
|
3500
|
6000
|
5100
|
450
|
250
|
570
|
30
|
6100*2600*4200
|
350T/7000
|
3500
|
7000
|
5620
|
450
|
250
|
570
|
30
|
7100*2500*4500
|
400T/4000
|
4000
|
4000
|
3100
|
350
|
300
|
620
|
30
|
4100*2700*3800
|
400T/6000
|
4000
|
6000
|
4820
|
400
|
320
|
620
|
30
|
6100*2800*4200
|
400T/6500
|
4000
|
6500
|
5100
|
400
|
320
|
620
|
30
|
6600*2800*4300
|
500T/5000
|
5000
|
5000
|
4100
|
400
|
320
|
620
|
37
|
5100*3000*4400
|
500T/6000
|
5000
|
6000
|
4820
|
400
|
320
|
620
|
37
|
6100*3000*4700
|
500T/7000
|
5000
|
7000
|
5620
|
400
|
320
|
620
|
37
|
7100*3000*4900
|
600T/6000
|
6000
|
6000
|
4820
|
400
|
320
|
620
|
45
|
6100*2965*4900
|
600T/7000
|
6000
|
7000
|
5620
|
400
|
320
|
620
|
45
|
7100*2965*4700
|
