Place of Origin: | CHINA |
---|---|
Brand Name: | SMART CNC |
Certification: | CE, ISO, TUV |
Model Number: | M25CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S |
Minimum Order Quantity: | 1 set |
Price: | USD3000~USD110000 |
Packaging Details: | Standard export packaging |
Delivery Time: | 40-60 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets/months |
Material / Metal Processed: | ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum | Max. Bending Angle (Deg):: | 190° |
---|---|---|---|
Automation: | Automatic | Power (KW): | 7.5 |
Bending Capacity: | Ø25X1.6mm | Touch Screen: | Taiwan Weinview |
Bending Accuracy: | ±0.1° | Core Components:: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gear Box |
Condition: | New | Warranty: | 3 Years |
High Light: | Fully Auto Electric Pipe Bending Machine,Fully Auto Copper Pipe Bending Machine,Electric Copper Pipe Bending Machine |

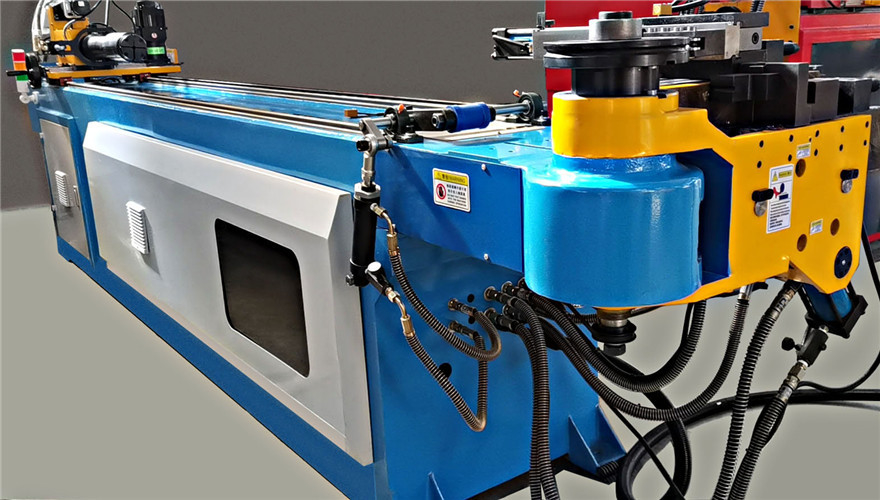

Fully Auto Electric Tube Pipe Bending Machine For Cs, Ss, Al, Copper Pipe
Brief Introduction on Fully Auto Electric Tube Pipe Bending Machine For Cs, Ss, Al, Copper Pipe
Fully Auto Electric Tube Pipe Bending Machine For Cs, Ss, Al, Copper Pipe Equipped with PLC or IPC Which Manage Bending (Y), Feeding (X) & Rotation (Z) In a Complete Automatic Cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We Only Use Popular Quality Components In The Production of Our Benders From Such Companies As JAPAN MIYSUBISHI, TAIWAN, WEINVIEW, JAPAN YUKEN, JAPAN NEIMICOM, SKF AND ETC...
This Value Priced CNC Tube Bending Machine Is An Excellent Choice for General Purpose and Any Type of Conventional Tube Bending Applications.
Machine Characteristics
M25CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motions under precision
control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending.
CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
Specification
Model |
M25CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S |
Bending Capacity | Ø25X1.6mm |
Range of Bending Radius | 5-100mm |
Max. Bending Degree | 190° |
Mandrel Length | 2200mm |
Touch Screen |
Taiwan Weinview |
Bending Accuracy | ±0.1° |
Rotating Accuracy | ±0.1° |
Feeding Accuracy | ±0.1mm |
