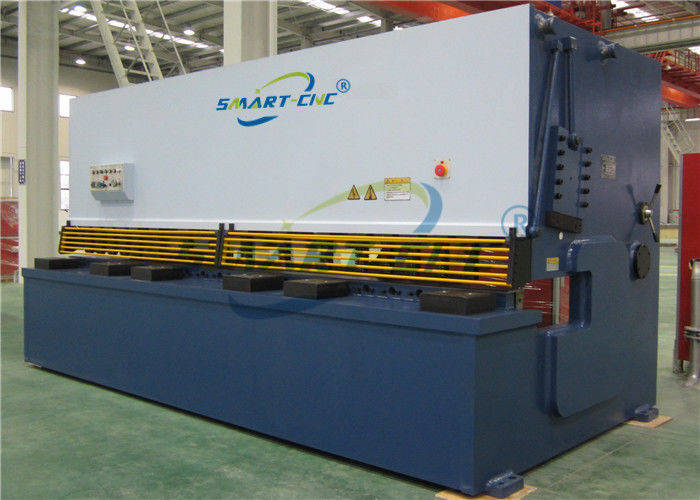

QC12K-12×4000 Manual Sheet Metal Cutting Machine Cutting Machine Metal Mini Metal Cutting Machine
Specifications
Sheet plate welded structure is adopted, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice apperance, fitted with digital display system.
Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
Rolling material support ball is provided, to minimize fish tall with sheet bar and to reduce frictional resistance.
The machine tool is provided with the functions of digital display, soft limit, as well as prompt for one-way positioning clearance, and automatic counting for shearing.
The rear stopper is fitted with coder and digital display system, so that the position of rear stopper is displayed more accurately, thus to further enhance the shearing precision of this machine.
MAIN SPECIFICATIONS
| Type | Cutting thickness | Cutting width | Shear angle (°) |
Material strength (KN/cm) |
Back gauge range (mm) |
Strokes (N/Min) |
Motor power (KW) |
Overall dimension (L×W×H) (mm) |
| 4x2000 | 4 | 2000 | 1°30′ | ≤450 | 20～500 | 14 | 5.5 | 3040×1550×1550 |
| 4x3200 | 4 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 5.5 | 3840×1550×1550 |
| 4x4000 | 4 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 5.5 | 4600×1700×1700 |
| 4x6000 | 4 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 7.5 | 6460×2100×2200 |
| 6x2500 | 6 | 2500 | 1°30′ | ≤450 | 20～500 | 14 | 7.5 | 3040×1710×1620 |
| 6x3200 | 6 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 7.5 | 3840×1710×1620 |
| 6x4000 | 6 | 4000 | 1°30′ | ≤450 | 20～600 | 9 | 7.5 | 4620×1850×1700 |
| 6x5000 | 6 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 3140×1710×1620 |
| 6x6000 | 6 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 11 | 6480×2100×2300 |
| 8x2500 | 8 | 2500 | 1°30′ | ≤450 | 20～500 | 11 | 7.5 | 3040×1700×1700 |
| 8x3200 | 8 | 3200 | 1°30′ | ≤450 | 20～500 | 8 | 7.5 | 3860×1700×1700 |
| 8x4000 | 8 | 4000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 4640×1700×1700 |
| 8x5000 | 8 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 5400×2400×2000 |
| 8x6000 | 8 | 6000 | 1°30′ | ≤450 | 20～800 | 8 | 11 | 6480×2100×2350 |
| 10x2500 | 10 | 2500 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3040×1800×1700 |
| 10x3200 | 10 | 3200 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3860×2000×1700 |
| 10x4000 | 10 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 11 | 4650×2100×2000 |
| 10x6000 | 10 | 6000 | 1°30′ | ≤450 | 20～800 | 10 | 15 | 6500×2100×2300 |
| 12x2500 | 12 | 2500 | 2° | ≤450 | 20～600 | 12 | 18.5 | 3140×2050×2000 |
| 12x3200 | 12 | 3200 | 2° | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 12x4000 | 12 | 4000 | 2° | ≤450 | 20～600 | 10 | 18.5 | 4680×2150×2100 |
| 12x5000 | 12 | 5000 | 2° | ≤450 | 20～600 | 6 | 18.5 | 3240×1900×1900 |
| 12x6000 | 12 | 6000 | 2° | ≤450 | 20～1000 | 5 | 18.5 | 6900×2600×2700 |
| 16x2500 | 16 | 2500 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3140×2150×2000 |
| 16x3200 | 16 | 3200 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 16x4000 | 16 | 4000 | 2°30′ | ≤450 | 20～800 | 10 | 18.5 | 4650×2150×2200 |
| 16x5000 | 16 | 5000 | 2° | ≤450 | 20～1000 | 6 | 18.5 | 5900×2600×2700 |
| 16x6000 | 16 | 6000 | 2° | ≤450 | 20～1000 | 5 | 22 | 6900×2700×2700 |
| 20x2500 | 20 | 2500 | 3° | ≤450 | 20～800 | 8 | 22 | 3440×2300×2500 |
| 20x3200 | 20 | 3200 | 3° | ≤450 | 20～800 | 8 | 22 | 4150×2350×2700 |
| 20x4000 | 20 | 4000 | 3° | ≤450 | 20～1000 | 5 | 22 | 4850×2600×2400 |
| 20x6000 | 20 | 6000 | 3° | ≤450 | 20～1000 | 4 | 22 | 6700×3000×3000 |
| 25x2500 | 25 | 2500 | 3° | ≤450 | 20～1000 | 8 | 37 | 3200×2700×2900 |
| 25x3200 | 25 | 3200 | 3° | ≤450 | 20～1000 | 5 | 37 | 4200×2400×2500 |
| 30x2500 | 30 | 2500 | 3° | ≤450 | 20～1000 | 4 | 37 | 3300×2900×2000 |
| 30x3200 | 30 | 3200 | 3°30′ | ≤450 | 20～1000 | 4 | 40 | 4200×2500×2600 |
| 40x2500 | 40 | 2500 | 4° | ≤450 | 20～1000 | 3 | 75 | 3200×3300×3200 |
| 40x3200 | 40 | 3200 | 4° | ≤450 | 20～1000 | 3 | 90 | 4300×3300×3000 |
Swing beam shear standard configuration:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. MD11 control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.
