160 Ton 4000 NC Iron Sheet Bending Machine , Sheet Metal Bending Machine

Name: 160 Ton 4000 NC Iron Sheet Bending Machine , Sheet Metal Bending Machine
Brand: Wuxi Smart CNC Equipment Group Co.,LTD
SKU: WC67K-160/4000
Price: 101,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SMART CNC

Certification: CE ISO TUV

Model Number: WC67K-160/4000

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude

Delivery Time: 30 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 set/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                hydraulic sheet metal press brake, hydraulic bending brake


Name:	NC Hydraulic Press Brake	Pressure:	1600KN
Motor:	YASKAWA	Length:	4000mm
Electrical:	Schneider	Delivery Time:	26 Days
Max Bending Thickness:	8mm	Types:	Torsion Bar

Name:	NC Hydraulic Press Brake
Pressure:	1600KN
Motor:	YASKAWA
Length:	4000mm
Electrical:	Schneider
Delivery Time:	26 Days
Max Bending Thickness:	8mm
Types:	Torsion Bar

Product Description

160ton 4000 NC Hydraulic Press Brake,Iron Sheet Bending Machine, Sheet Metal Bending Machine

1. Hydraulic system:

1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.

2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

4. The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

2. Electrical system and the safety interlock:

1. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate

3. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

3. Synchro control system:

1. Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism

2. ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.

3.The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Bending depth adjustment and RAM structures:

1. The Machine By DELEM DA41 or ESTUN E21 CNC Control With the point of programming, can automatically calculate the bending angle bending depth

2. Can move the ram up slowly,which allows the operator to control work piece conveniently.

3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

4. Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000 mm sections).

5. Servo motorized Backgauge (standard)

1. CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.

2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.

3. High-precision ball screw and linear guide-way.Particular finger-stop design,enlarge the range of back gauge

WC67Y/WC67K Series Technical Parameters

Model	Nominal pressure (mm)	Worktable length (mm)	Distance between housings (mm)	Throat depth (mm)	Stroke (mm)	Max. opening height (mm)	Power (KW)	Dimension LxWxH (mm)
30T/1600	300	1600	1280	200	80	285	3	1600x1000x1600
35T/2000	350	2000	1480	200	80	285	4	2000x1100x1800
40T/2200	400	2200	1850	230	100	320	5.5	2200x1200x1910
40T/2500	400	2500	1850	230	100	320	5.5	2500x1200x1910
50T/2500	500	2500	1850	230	100	320	5.5	2500x1200x2000
63T/2500	630	2500	1900	250	100	320	5.5	2500x1300x2210
63T/3200	630	3200	2500	250	100	320	5.5	3200x1300x2210
80T/2500	800	2500	1900	300	100	320	7.5	2500x1400x2300
80T/3200	800	3200	2500	320	100	350	7.5	3200x1500x2300
80T/4000	800	4000	3000	320	100	350	7.5	4000x1500x2400
100T/2500	1000	2500	1900	320	120	320	7.5	2500x1600x2400
100T/3200	1000	3200	2500	320	120	370	7.5	3200x1600x2600
100T/4000	1000	4000	3000	320	120	370	7.5	4000x1600x2700
125T/3200	1250	3200	2500	320	120	370	7.5	3200x1600x2600
125T/4000	1250	4000	3000	320	120	370	7.5	4000x1600x2700
160T/3200	1600	3200	2500	320	200	460	11	3200x1700x2700
160T/4000	1600	4000	3000	320	200	460	11	4000x1700x2800
160T/5000	1600	5000	4000	320	200	460	11	5000x1900x3100
160T/6000	1600	6000	4940	320	200	460	11	6000x1900x3200
200T/3200	2000	3200	2500	320	200	460	11	3200x1950x2800
200T/4000	2000	4000	3000	320	200	460	11	4000x1950x2800
200T/5000	2000	5000	4000	320	200	460	11	5000x1950x3000
200T/6000	2000	6000	5000	320	200	460	11	6000x1950x3300
250T/3200	2500	3200	2500	400	250	590	18.5	3200x2000x3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000x2000x3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000x2000x3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000x2000x3400
300T/3200	3000	3200	2530	400	250	590	22	3200x2000x3450
300T/4000	3000	4000	3000	400	250	590	22	4000x2000x3450
300T/5000	3000	5000	4000	400	250	590	22	5000x2000x3450
300T/6000	3000	6000	5000	400	250	590	22	6000x2000x3450
400T/4000	4000	4000	3000	400	250	590	30	4000x2180x3400
400T/5000	4000	5000	4000	400	250	590	30	5000x2180x3500
400T/6000	4000	6000	5000	400	250	590	30	6000x2180x3800
500T/5000	5000	5000	4000	400	250	590	45	5050x3500x3700
500T/6000	5000	6000	5000	400	320	590	45	6050x3500x3700
600T/4000	6000	4000	3000	400	320	590	55	4050x4500x3700
600T/6000	6000	6000	5000	400	320	590	55	6050x4500x3700
800T/6000	8000	6000	5000	400	320	590	55	6300x4500x6000

Note: No notice if any changes of the above statistics made.

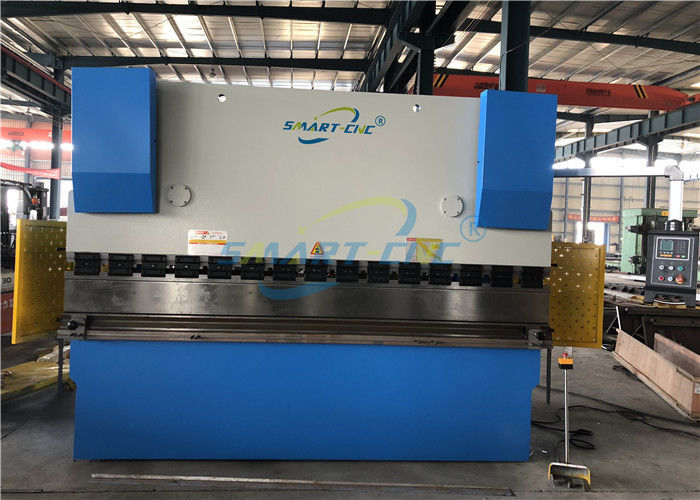

160 Ton 4000 NC Iron Sheet Bending Machine , Sheet Metal Bending Machine 0
