Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | SM-38 |
Minimum Order Quantity: | 1 sets |
Price: | 40000-60000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Voltage: | 220V/380V | Condition: | New |
---|---|---|---|
Warranty: | 2 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Color: | Blue | Advantage: | High Capacity |
Automation: | Automatic Bending Machine | Machine Size: | 4300X950X1200 |
Maximum Core Length: | 2400MM | Maximum Bending: | 300MM |
Machine Weight: | 4500kg | Power (kW): | 15kw |
High Light: | Stainless Steel Pipe Bender,CNC Rebar Bending Machine |
Stainless Steel Pipe Bending Machine CNC Rebar Bending Machine Tube Bending Machine CNC Square Pipe Bender CNC

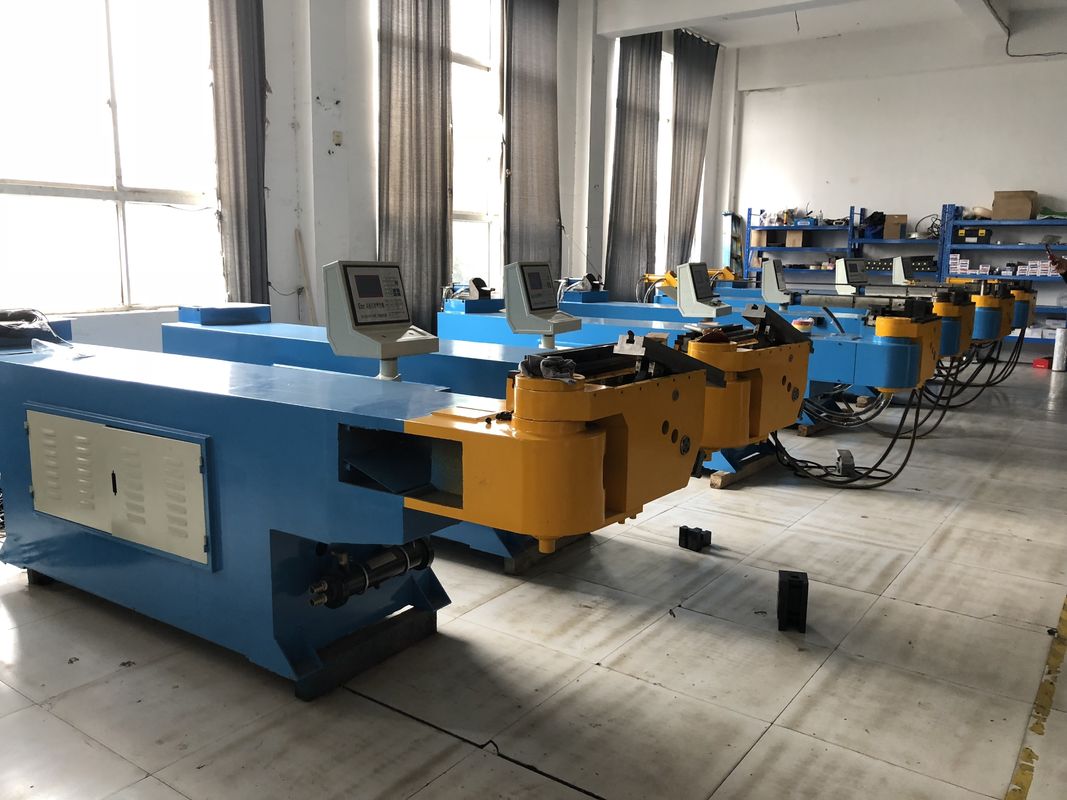

CNC Stainless Steel Pipe Bending Machine Rebar Bending Machine Tube Bending Machine Square pipe bender is full automatic type for bending three dimensional complicated workpiece, which can input YBC or XYZ data into CNC control system, and machine make the tube bend accordingly. Bending , rotation and feeding by servomotor. Maximum 330 sets of program can be stored and maximum 12 bends for each program. 3D complicated workpiece can be finished once. DW38 CNC-3A-1S Pipe Bending Machine was widely used in mass production of standardized products, such as Automobile spare parts (brake line, bumper bar, silencer and etc.), bike and motocycle, fitness equipment, sanitary equipment, vent-pipe, petroleum/water pipeline, shipbuilding, chemical Industries and etc.
Specification
ITEM / MODEL |
M16 |
M25 |
M38 |
M50 |
M65 |
M80 |
M100 |
M130 |
|
Max. bending capability(O.D x W.T.) |
Mild steel |
ø15.88 x 1.5t |
ø25.4 x 2.0t |
ø38.1 x 2.0t |
ø50.8 x 2.5t |
ø63.5 x 3.0t |
ø76.2 x 3.0t |
ø101.6 x 3.0t |
ø127 x 5.0t |
Stainless steel |
ø12.7 x 1.5t |
ø22.2 x 1.5t |
ø31.75 x 1.8t |
ø44.45x 2.0t |
ø50.8 x 2.0t |
ø63.5 x 2.5t |
Ø89.8 x 2.0t |
ø114.3 x 3.0t |
|
Rectangle & square tube |
12 x 1.2t |
20 x 1.5t |
30 x 1.8t |
40 x 2t |
50 x 2.5t |
60 x 3t |
80 x 2t |
100 x 3t |
|
Max. draw bending radius (mm) |
90 |
120 |
150 |
200 |
250 |
350 |
400 |
450 |
|
Max. bending angle |
200° |
200° |
200° |
200° |
200° |
190° |
190° |
190° |
|
Max. effective |
1000 |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
4500 |
|
Bending |
Accuracy |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
Speed/sec |
180° |
160° |
150° |
110° |
100° |
65° |
50° |
38° |
|
Feeding |
Accuracy |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
Speed/sec |
1200 |
1100 |
1100 |
1000 |
1000 |
750 |
650 |
580 |
|
Rotation |
Accuracy |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
Speed/sec |
300° |
260° |
240° |
200° |
200° |
180° |
120° |
100° |
|
Max. radius difference between 2 radius |
30 |
40 |
50 |
60 |
80 |
100 |
120 |
150 |
|
Machine dimensions |
L=270 |
L=350 |
L=420 |
L=510 |
L=600 |
L=630 |
L=750 |
L=1000 |
|
Weight |
1200kgs |
1400kgs |
2200kgs |
4500kgs |
5000kgs |
8000kgs |
11000kgs |
13000kgs |
Remarks:
1. Due to the continuous improvement on design, the specifications above are subject to change without notice.
2. Plz contact sales to recommend you the suitable model with the latest specification details.
