Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | R500 |
Minimum Order Quantity: | 1 sets |
Price: | 9000-15000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 sets/months |
Pole Diamter: | 60mm | Application: | Light Pole Manufacture |
---|---|---|---|
Height: | 5-12m | Name: | Competitive Prices Light Steel Pole Mould Production Line,Light Pole Automatic Production Line |
Material: | Mild Steel | Radius: | 500,700 |
High Light: | Conical Pole Tube Bending Machine,Conical Pole Bending Machine |
Tube Bending Machine For Conical Pole, Pole Bending Machine, Lighting Pole Bending Machine

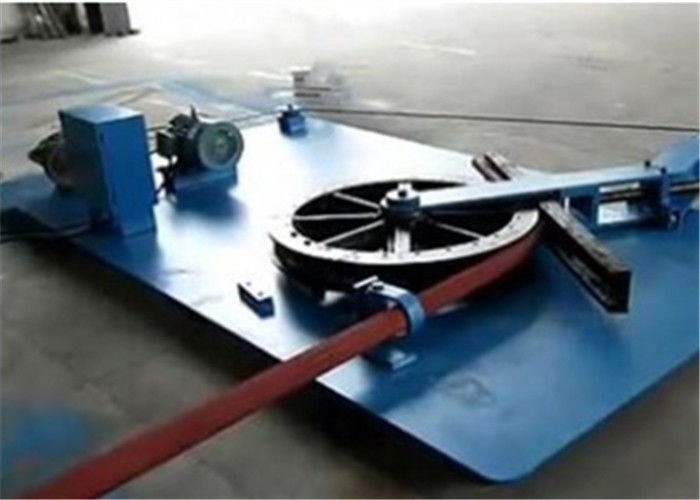

Description: This equipment composed by the board and bending mode, with two sets of molds. direct mode traction motor reducer, will die on the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler, economic benefits, compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.
No. | Model | Value | Unit | Note | |
1 | Bending Diameter | φ90 | Mm | ||
2 | Bending Radius | r500,r700 | Mm | 2 Sets Of Round Mould | |
3 | Bending Tube Thickness | 4 | Mm | ||
4 |
Motor Power |
Model | y132s-6 | Mm | |
Power | 3 | Kw | |||
Rotate Speed | 960 | Rpm | |||
5 |
Size | l | 3000 | Mm | |
w | 2300 | Mm | |||
h | 620 | Mm | |||
6 | Weight | 2300 | Kg |
Spare parts suppliers
NO | Name | Spec. | qty | Supplier |
1 | motor | 3kw | 1set | Siemens |
2 | reducer | zq250 | 1set | Chinese famous brand |
3 | electric components | 1set | Schneider,Siemens | |
4 | bending die | radius 500mm | 1pcs | Chinese famous brand |
5 | bending die | radius 700mm | 1pec | Chinese famous brand |
