Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | Q35Y-25 |
Minimum Order Quantity: | 1 sets |
Price: | 9000-15000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 3 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Voltage: | 380V/220V Optional | Warranty: | 2 Years |
---|---|---|---|
Power Source: | Hydraulic | Function: | Puncher Cuttier Shear Ironworker |
Material: | Steel Material | Product Name: | Hydraulic Ironworker |
Highlight: | Hydraulic Notching Ironworker,30t Notching Ironworker,Puncher Cutter Shear Ironworker |

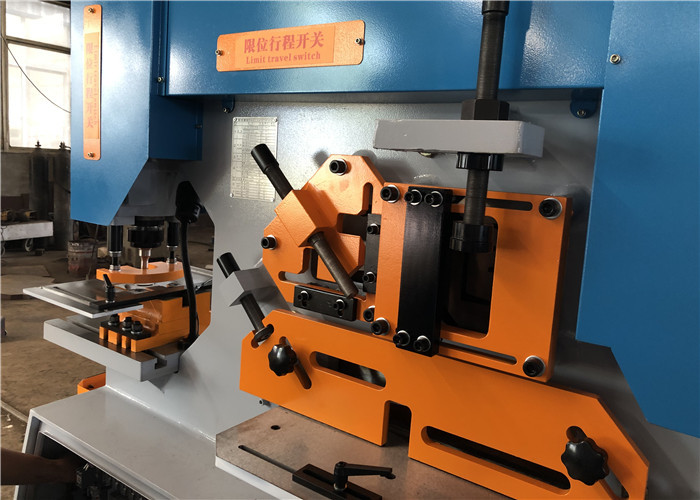

Hydraulic Notching Iron Worker 30ton, 60ton, 90ton, 120ton
A hydraulic ironworker can be used for punching,shearing,notching and other metal fabrication functions. Q35Y series special tooling department can be desigh any special tool you need for your metal fabricating needs.
SMART CNC QY35 series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, steel plate bending, angle steel notching and bending, angle steel shearing/cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting, T-bar shearing/cutting, press brake, angle bending and pipe notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
QY series is improved machine on the base of standard HIW series. It goes along with Automatic Holding System and Temperature Cooling System.
Automatic Holding System: There is automatic holding system in angle steel shearing and plate shearing work position. The holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency.
Temperature cooling system:Through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55 degree, the cooling system inside will run automatically to decrease temperature in order to protect machine.
HIW-L series is improved machine on the base of standard HIW-E series. It also goes along with automatic holding system and temperature cooling system. At the same times, punching position and shearing position can work synchronously.
Features:
1. High Quality Components & System
a. Main Electrical component: Schneider, Germany.
b. Valve: Yuken, Japan
c. Pump: Atos, Italy
d. Oil Seals: NOK, Japan
e. Timer Relay: OMRON, Japan
f. Wiring Terminal Block:WEIDMULLER, Germany
g. Motor: Weiteli, China
2. Cost Effective
HIW SERIES Hydraulic Ironworker With Very good price/performance ratio
Various HIW SERIES Hydraulic Ironworker capacity from 45T to 400T to meet your requirement.
3. Stable Performance & Reliable Quality
HIW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.
4. Simple Operation
The operation of hydraulic ironworker is controlled by foot switc
1 | Type | Q35-20 |
2 | Punch pressure | 750 KN |
3 | Max. shear plate thickness | 20 mm |
4 | Max. shear plate width | 480 mm |
5 | Strength of materials | ≤450 N/mm2 |
6 | Shear angle | 8 ° |
7 | Slider stroke | 80 mm |
8 | Stroke number | 8 /min |
9 | Throat depth | 355 mm |
10 | Max. punching capacity | φ30×20 |
11 | Motor power | 5.5 Kw |
12 | G.W. | 2200 KG |
13 | Before packing size (L*W*H) | 1860 *790 *1900 mm |
14 | Delivery time | 30 days after received deposit |
15 | Payment | 30% deposit, 70% balance before shipment |
