| Place of Origin: | China |
|---|---|
| Brand Name: | SMART CNC |
| Certification: | CE ISO TUV |
| Model Number: | QC12K-8×3200 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Supply Ability: | 50 SETS/MONTH |
| Max Thickness: | 8mm | Width: | 3200mm |
|---|---|---|---|
| Motor: | Siemens | Pump: | SUNNY |
| Controller: | E21S | Warranty: | 2 Years |
| High Light: | manual sheet metal cutting machine,hydraulic shear cutting machine |
||

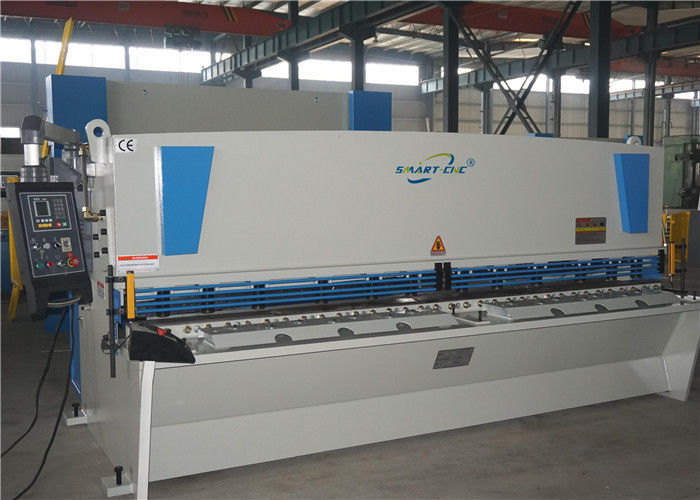

Hydraulic Swing Beam Shear Machine 8mm 3200mm width for cabinet industry
QC12Y/QC12K SERIES Hydraulic Swing Beam Shear
Main functions and features
1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2. Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4. The machine uses protection fence for safe operation.
5. Digital display device for size of back gauge and shearing times available.
MAIN SPECIFICATIONS
| Type | Cutting thickness | Cutting width | Shear angle (°) |
Material strength (KN/cm) |
Back gauge range (mm) |
Strokes (N/Min) |
Motor power (KW) |
Overall dimension (L×W×H) (mm) |
| 4x2000 | 4 | 2000 | 1°30′ | ≤450 | 20～500 | 14 | 5.5 | 3040×1550×1550 |
| 4x3200 | 4 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 5.5 | 3840×1550×1550 |
| 4x4000 | 4 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 5.5 | 4600×1700×1700 |
| 4x6000 | 4 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 7.5 | 6460×2100×2200 |
| 6x2500 | 6 | 2500 | 1°30′ | ≤450 | 20～500 | 14 | 7.5 | 3040×1710×1620 |
| 6x3200 | 6 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 7.5 | 3840×1710×1620 |
| 6x4000 | 6 | 4000 | 1°30′ | ≤450 | 20～600 | 9 | 7.5 | 4620×1850×1700 |
| 6x5000 | 6 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 3140×1710×1620 |
| 6x6000 | 6 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 11 | 6480×2100×2300 |
| 8x2500 | 8 | 2500 | 1°30′ | ≤450 | 20～500 | 11 | 7.5 | 3040×1700×1700 |
| 8x3200 | 8 | 3200 | 1°30′ | ≤450 | 20～500 | 8 | 7.5 | 3860×1700×1700 |
| 8x4000 | 8 | 4000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 4640×1700×1700 |
| 8x5000 | 8 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 5400×2400×2000 |
| 8x6000 | 8 | 6000 | 1°30′ | ≤450 | 20～800 | 8 | 11 | 6480×2100×2350 |
| 10x2500 | 10 | 2500 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3040×1800×1700 |
| 10x3200 | 10 | 3200 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3860×2000×1700 |
| 10x4000 | 10 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 11 | 4650×2100×2000 |
| 10x6000 | 10 | 6000 | 1°30′ | ≤450 | 20～800 | 10 | 15 | 6500×2100×2300 |
| 12x2500 | 12 | 2500 | 2° | ≤450 | 20～600 | 12 | 18.5 | 3140×2050×2000 |
| 12x3200 | 12 | 3200 | 2° | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 12x4000 | 12 | 4000 | 2° | ≤450 | 20～600 | 10 | 18.5 | 4680×2150×2100 |
| 12x5000 | 12 | 5000 | 2° | ≤450 | 20～600 | 6 | 18.5 | 3240×1900×1900 |
| 12x6000 | 12 | 6000 | 2° | ≤450 | 20～1000 | 5 | 18.5 | 6900×2600×2700 |
| 16x2500 | 16 | 2500 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3140×2150×2000 |
| 16x3200 | 16 | 3200 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 16x4000 | 16 | 4000 | 2°30′ | ≤450 | 20～800 | 10 | 18.5 | 4650×2150×2200 |
| 16x5000 | 16 | 5000 | 2° | ≤450 | 20～1000 | 6 | 18.5 | 5900×2600×2700 |
| 16x6000 | 16 | 6000 | 2° | ≤450 | 20～1000 | 5 | 22 | 6900×2700×2700 |
| 20x2500 | 20 | 2500 | 3° | ≤450 | 20～800 | 8 | 22 | 3440×2300×2500 |
| 20x3200 | 20 | 3200 | 3° | ≤450 | 20～800 | 8 | 22 | 4150×2350×2700 |
| 20x4000 | 20 | 4000 | 3° | ≤450 | 20～1000 | 5 | 22 | 4850×2600×2400 |
| 20x6000 | 20 | 6000 | 3° | ≤450 | 20～1000 | 4 | 22 | 6700×3000×3000 |
| 25x2500 | 25 | 2500 | 3° | ≤450 | 20～1000 | 8 | 37 | 3200×2700×2900 |
| 25x3200 | 25 | 3200 | 3° | ≤450 | 20～1000 | 5 | 37 | 4200×2400×2500 |
| 30x2500 | 30 | 2500 | 3° | ≤450 | 20～1000 | 4 | 37 | 3300×2900×2000 |
| 30x3200 | 30 | 3200 | 3°30′ | ≤450 | 20～1000 | 4 | 40 | 4200×2500×2600 |
| 40x2500 | 40 | 2500 | 4° | ≤450 | 20～1000 | 3 | 75 | 3200×3300×3200 |
| 40x3200 | 40 | 3200 | 4° | ≤450 | 20～1000 | 3 | 90 | 4300×3300×3000 |
Swing beam shear standard configuration:
1 Hydraulic swing structures, blade beam nitrogen cylinder return.
2 Clip-and -sleeve pipe system.
3 Manual blade clearance adjustment
4 Standard front guard
5 Safe pedal.
6 with cutting stainless steel blades(material 6CrW2Si).
7 Valve:Rexroth, Germany
8 Motor:Siemens,Germany.
9 Pump:SUNNY,USA.
10 Electrical element:Schneider.
11NOK Japan layer seals for main cylinders.
12 Estun E21S system control.
13Three emergency stop.
14Electrical cabinet with switch power outage.
15Optional controller E200,DAC360S
