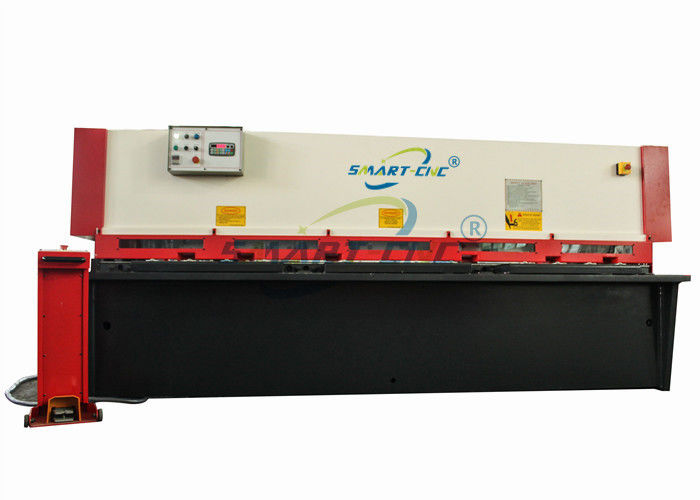

Hydraulic Swing Beam Shear Machine 10mm 3200mm Cnc Metal Cutting Machine Plate Cutting Machine
1. Hydraulic dive, swing beam. Whole weld knife rest works smoothly and quickly, and is prompt by
accumulator Nitrogen cylinder.
2. Possessing a speed blades gap adjusting device, permit to adjust the blades gap.
3. The stroke and frequency of shearing can be controlled. The machine has the function of single
shearing and automatic continuous shearing.
4. The stroke and frequency of shearing can be controlled. The machine has the function of single
shearing and automatic continuous shearing.
5. After inputting precomputed data, the back gauge can be automatically moved, positioned and
stopped.
6. The vertical gripper of intellect position is controlled by pneumatic system.
MAIN SPECIFICATIONS
| Type | Cutting thickness | Cutting width | Shear angle (°) |
Material strength (KN/cm) |
Back gauge range (mm) |
Strokes (N/Min) |
Motor power (KW) |
Overall dimension (L×W×H) (mm) |
| 4x2000 | 4 | 2000 | 1°30′ | ≤450 | 20～500 | 14 | 5.5 | 3040×1550×1550 |
| 4x3200 | 4 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 5.5 | 3840×1550×1550 |
| 4x4000 | 4 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 5.5 | 4600×1700×1700 |
| 4x6000 | 4 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 7.5 | 6460×2100×2200 |
| 6x2500 | 6 | 2500 | 1°30′ | ≤450 | 20～500 | 14 | 7.5 | 3040×1710×1620 |
| 6x3200 | 6 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 7.5 | 3840×1710×1620 |
| 6x4000 | 6 | 4000 | 1°30′ | ≤450 | 20～600 | 9 | 7.5 | 4620×1850×1700 |
| 6x5000 | 6 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 3140×1710×1620 |
| 6x6000 | 6 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 11 | 6480×2100×2300 |
| 8x2500 | 8 | 2500 | 1°30′ | ≤450 | 20～500 | 11 | 7.5 | 3040×1700×1700 |
| 8x3200 | 8 | 3200 | 1°30′ | ≤450 | 20～500 | 8 | 7.5 | 3860×1700×1700 |
| 8x4000 | 8 | 4000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 4640×1700×1700 |
| 8x5000 | 8 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 5400×2400×2000 |
| 8x6000 | 8 | 6000 | 1°30′ | ≤450 | 20～800 | 8 | 11 | 6480×2100×2350 |
| 10x2500 | 10 | 2500 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3040×1800×1700 |
| 10x3200 | 10 | 3200 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3860×2000×1700 |
| 10x4000 | 10 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 11 | 4650×2100×2000 |
| 10x6000 | 10 | 6000 | 1°30′ | ≤450 | 20～800 | 10 | 15 | 6500×2100×2300 |
| 12x2500 | 12 | 2500 | 2° | ≤450 | 20～600 | 12 | 18.5 | 3140×2050×2000 |
| 12x3200 | 12 | 3200 | 2° | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 12x4000 | 12 | 4000 | 2° | ≤450 | 20～600 | 10 | 18.5 | 4680×2150×2100 |
| 12x5000 | 12 | 5000 | 2° | ≤450 | 20～600 | 6 | 18.5 | 3240×1900×1900 |
| 12x6000 | 12 | 6000 | 2° | ≤450 | 20～1000 | 5 | 18.5 | 6900×2600×2700 |
| 16x2500 | 16 | 2500 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3140×2150×2000 |
| 16x3200 | 16 | 3200 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 16x4000 | 16 | 4000 | 2°30′ | ≤450 | 20～800 | 10 | 18.5 | 4650×2150×2200 |
| 16x5000 | 16 | 5000 | 2° | ≤450 | 20～1000 | 6 | 18.5 | 5900×2600×2700 |
| 16x6000 | 16 | 6000 | 2° | ≤450 | 20～1000 | 5 | 22 | 6900×2700×2700 |
| 20x2500 | 20 | 2500 | 3° | ≤450 | 20～800 | 8 | 22 | 3440×2300×2500 |
| 20x3200 | 20 | 3200 | 3° | ≤450 | 20～800 | 8 | 22 | 4150×2350×2700 |
| 20x4000 | 20 | 4000 | 3° | ≤450 | 20～1000 | 5 | 22 | 4850×2600×2400 |
| 20x6000 | 20 | 6000 | 3° | ≤450 | 20～1000 | 4 | 22 | 6700×3000×3000 |
| 25x2500 | 25 | 2500 | 3° | ≤450 | 20～1000 | 8 | 37 | 3200×2700×2900 |
| 25x3200 | 25 | 3200 | 3° | ≤450 | 20～1000 | 5 | 37 | 4200×2400×2500 |
| 30x2500 | 30 | 2500 | 3° | ≤450 | 20～1000 | 4 | 37 | 3300×2900×2000 |
| 30x3200 | 30 | 3200 | 3°30′ | ≤450 | 20～1000 | 4 | 40 | 4200×2500×2600 |
| 40x2500 | 40 | 2500 | 4° | ≤450 | 20～1000 | 3 | 75 | 3200×3300×3200 |
| 40x3200 | 40 | 3200 | 4° | ≤450 | 20～1000 | 3 | 90 | 4300×3300×3000 |
Swing beam shear standard configuration:
1 Hydraulic swing structures, blade beam nitrogen cylinder return.
2 Clip-and -sleeve pipe system.
3 Manual blade clearance adjustment
4 Standard front guard
5 Safe pedal.
6 with cutting stainless steel blades(material 6CrW2Si).
7 Valve:Rexroth, Germany
8 Motor:Siemens,Germany.
9 Pump:SUNNY,USA.
10 Electrical element:Schneider.
11 NOK Japan layer seals for main cylinders.
12 Estun E21S system control.
13 Three emergency stop.
14 Electrical cabinet with switch power outage.
15 Optional controller E200,DAC360S
