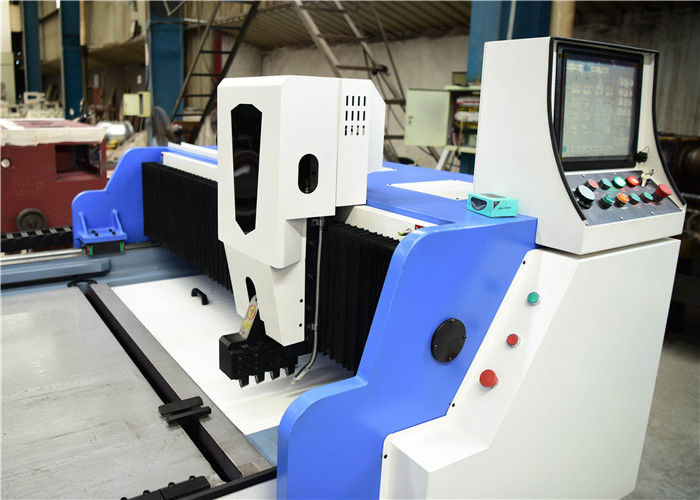

Full Oil Seal Metal Sheet Grooving Machine Maintenance Free Smooth Function

Sheet Metal CNC V-Cut Machine For Stainless Steel 1250 1500mm,CNC Grooving Machine,CNC V Cutting Machine

Features:
The machine is full servo numerical control metal thin plate plane slot machine. This machine adopts advanced CNC system design. With high processing precision, simple operation, no noise, no vibration and so on. The machine used in sheet metal parts (including stainless steel plate, aluminum plate, aluminum plate, copper, iron, plastic board, acrylic board and some other special plates.) The processing of the V type groove, the U type groove and other irregular groove is carried out, which is especially suitable for the processing of the V groove before the bending of the sheet metal parts.

1. Configuration structure: RGEK type CNC sheet metal gouging machine is our company scientific research personnel at home and abroad of sheet metal gouging machine based on the research and development of the upgrading of products, the European security design standard, correct and streamlined design, this machine has all the properties of the traditional models, fully solve the customer encountered in the actual operation process of the a series of problems.
2. Main structure: The whole body is welded with steel, bolt fixed, aging treatment, CNC Floor milling machining,and it has good stability, high strength and smooth running; A steel surface by sand blasting and spray anti rust paint, the surface of the color is more beautiful; equipment instead of the traditional screw rod transmission mode for the import of fine grinding high-speed steel gear transmission, imported ball screw and high pitch, and imported high precision linear guide mute. Spindle system with servo motor with imported high torque star reducer as the drive, more easy to maintain, lower failure rate, the operation of the tool in the processing of the workpiece more stable.
3. Evacuation equipment using material structure, making the equipment are not in the feeding and discharge of surface damage of sheet.
4.  The equipment used front and behind three knife molding process, resulting in the processing of iron is greatly reduced.
5.  The equipment adopts pneumatic control system, automatic clamp plate, pressing and releasing pressure, stable and reliable, work fast, makes the products processed without clamping marks, indentation, automatic spray cooling method for cooling, rapid cooling of the tool, prolong the service life of the cutter.
6.  The whole operating system of the machine is a precise electrical pneumatic combination, which has the advantages of convenient operation, flexible action, high efficiency, low noise and no environmental pollution.
7.  Equipment worktable with high strength of 6CrW2Si material as the base, makes the worktable less susceptible to wear when machining workpieces. And the table panel and body parts by moving adjustable, the accuracy of the distance from the point of the knife to the worktable is guaranteed to be around ±0.02mm.
8.  Equipment adopt PLC man-machine interface programming. Easy to learn and easy to understand, accurate positioning.
9.  Equipment clamps and presses are pneumatically controlled. Make this machine reach a high point in the concept of energy saving and environmental protection.
10.  The overall shape of the equipment is simple and generous, beautiful, the box set screw fixed structure, meet all kinds of technical personnel operating habits, so that the operator can fully reach the production and technical requirements at work.
11.  Adopting Japan MITSUBISHI touch screen system, the technology is mature, the instruction input is quick and clear, and the product is stable and reliable. Servo motor control tool and feeding device, planing and positioning precision, servo motor feeding, high precision and reliable.
12.  Electrical are all well-known global French Schneider Inc of the original product, to ensure that the circuit's life and stability.

2. Main specification

3. Configuration
