1250X4000 mm CNC V Cutting Machine ,CNC Gantry V Groover Machine

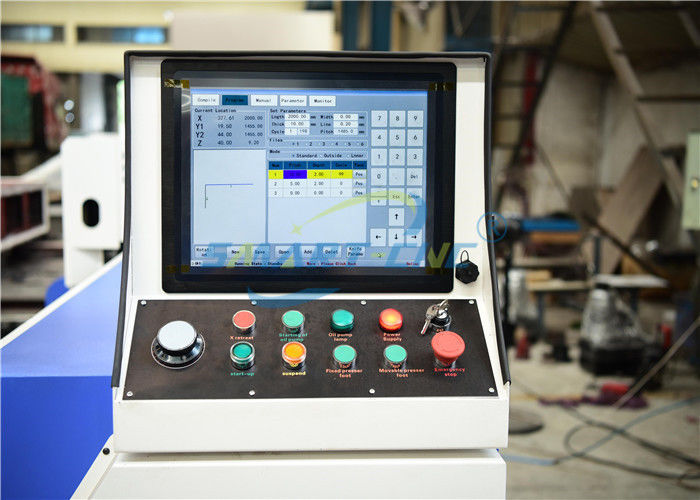

Features: 1. RGEK series CNC metal grooving machine is compact in structure, reliable in performance, easy operation, no deformation forever. The structure consists of three sets of servo motor drive system, pneumatic clamping system and main steel frame. 2. Y-axis System The Y-axis system of the machine is composed of ECMA-F20830 main motor, AC servo motor, planetary reducer timing belt and timing wheel, high-precision gear rack and linear guide rail, etc. The function of servo motor is to drive the cutter seat through planetary reducer to make rectilinear motion on the linear guide rail. 3. X-axis System The X-axis system is composed of E21320 servo motor, timing belt, timing wheel, ball screw, linear guide rail, backgauge rack, clamping tools etc parts. The motor drives ball screw and backgauge rack to make rectilinear motion on guide rail, and provide the accurate positioning power for the backgauge mechanism. 4. Z-axis System The Z-axis system is composed of C20604 servo motor, timing belt, timing wheel, ball screw, cutter holder and so on. Its function is to drive the ball screw and cutter seat make rectilinear motion through timing belt and timing wheel, and provide precise positioning power for the tool holder. 5. Pneumatic System The pneumatic system is divided into two groups, and the pneumatic system if part of the backgauge. Its function is to provide clamping force and tightly holding plate before grooving. 6. Electrical Control System The electrical control system is composed of PLC, actuator, touch screen, electric control element, electrical cabinet, etc. the electrical cabinet is installed in the side wall of the machine, which is convenient for maintenance and higher protection performance. Any work can be realized by controlling the touch screen.
