Wuxi Smart CNC Equipment Group Co.,LTD
“Quality First, Customer First”
Smart CNC not only produce Press Brake, Laser Machine,Shear, Rolling Machine, also supply other complete sheet metal machine solution.
| Place of Origin: | China |
|---|---|
| Brand Name: | SMART CNC |
| Certification: | CE ISO TUV |
| Model Number: | SYA-45 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Supply Ability: | 50 sets/months |
| Pressure: | 45ton | Delivery Time: | 20days |
|---|---|---|---|
| Warranty Time: | Two Years | Table: | 800x400mm |
| Hydraulic: | Italy | Types: | Mechanical |
| High Light: | pneumatic power press machine,power press punching machine |
||
Features:
aluminum window and door sliding punching press machine
1. Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2. Vertical located crankshaft, compact structure;aluminum window and door sliding punching press machine
3. Lengthened rectangular guideway with a surface of bronze plate;
4. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
5. PLC control and imported safety dual valve;aluminum window and door sliding punching press machine
6. Dry clutch and hydraulic overload protector.aluminum window and door sliding punching press machine
7. CE certificate.aluminum window and door sliding punching press machine
Standard Equipments:
1) Wet clutch
2) PLC
3) Hydraulic overload protecting pump
4) Touch screen
5) Cam controller
6) Die height adjusted motor (SYA-60 and upon models)
7) Auto lubrication system
8) Manual lubrication system

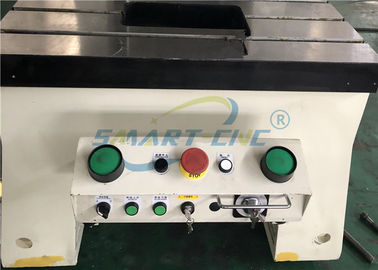

9) Double hand control panel

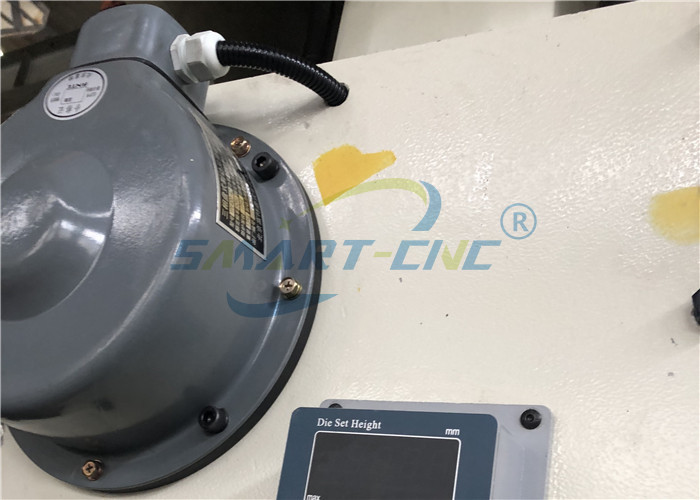

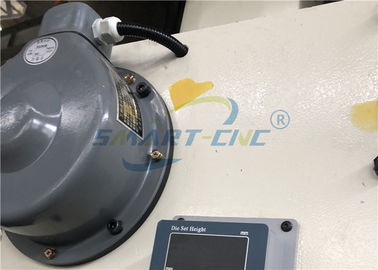

10) Electronic crankshaft angle indicator
11) Predetermined counter
12) Balance cylinders for slide and upper die
13) Work light
14) Joint for air
15) Joint for miss-feeding
16) Absorbing pads
Optional Equipments:
1) Dry clutch
2) Light curtain
3) Foot pedal
4) Die cushion
5) Inverter
6) Variable speed motor
7) Auto feed shaft
8) Die quick change device
| Specification | Unite | SYA-25 | SYA-35 | SYA-45 | SYA-60 | |||||
| Model | V | H | S | V | H | V | H | V | H | |
| Capacity | Ton | 25 | 35 | 45 | 60 | |||||
| Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
| Speed changing | S.p.m | 60-140 | 130-200 | 60-120 | 40-120 | 110-180 | 40-100 | 110-150 | 35-90 | 80-120 |
| Stable speed | S.p.m | 110 | 110 | 85 | 75 | 65 | ||||
| Stroke | mm | 70 | 30 | 80 | 70 | 40 | 80 | 50 | 120 | 60 |
| Die height | mm | 195 | 215 | 190 | 220 | 235 | 250 | 265 | 10 | 340 |
| Slide adjustment | mm | 50 | 50 | 55 | 60 | 75 | ||||
| Slide area | mm | 300×230×50 | 360×250×50 | 400×300×60 | 500×360×70 | |||||
| Bolster area | mm | 680×300×70 | 800×400×70 | 850×440×80 | 900×500×80 | |||||
| Shank hole | mm | Ø38.1 | Ø38.1 | Ø38.1 | Ø50 | |||||
| Main motor | Kw.p | 3.7×4 | 3.7×4 | 5.5×4 | 5.5×4 | |||||
| Slide adjust device | HP | manual operation | ||||||||
| Air pressure | Kg/cm² | 6 | 6 | 6 | 6 | |||||
| Presses precision | GB/JIS 1class | |||||||||
| Presses dimension | mm | 1280×850×2200 | 1380×900×2400 | 1600×950×2500 | 1600×1000×2800 | |||||
| Presses weight | Ton | 2.1 | 3 | 3.8 | 5.6 | |||||
| Die cushion capacity | Ton | - | 2.3 | 2.3 | 3.6 | |||||
| Stroke | mm | - | 50 | 50 | 70 | |||||
| Die cushion effective area | mm² | - | 300×230 | 300×230 | 350×300 | |||||
