Home > products > Automatic Power Press Machine > 250 Ton Automatic Power Press Machine High Efficiency With Double Crankshaft

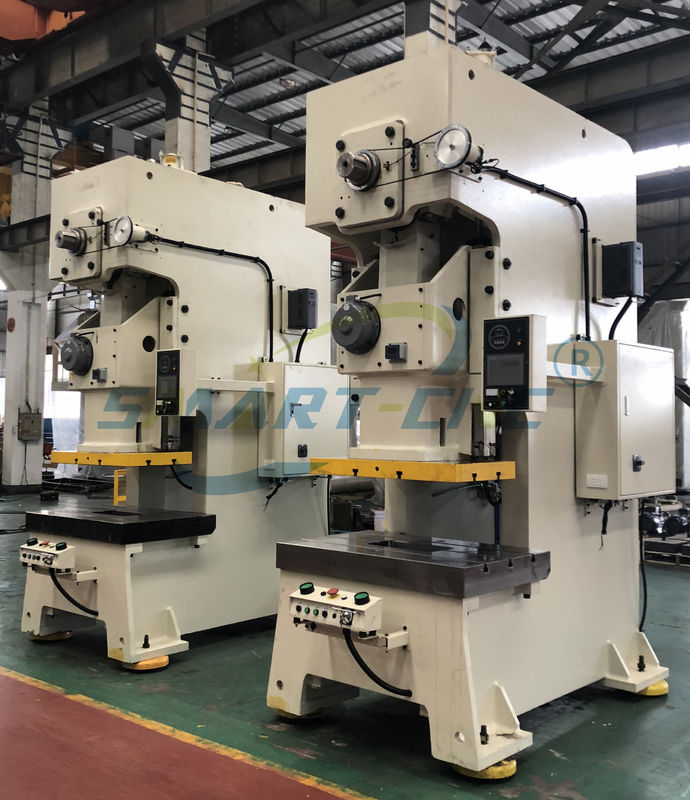

250 Ton Automatic Power Press Machine High Efficiency With Double Crankshaft

Name: 250 Ton Automatic Power Press Machine High Efficiency With Double Crankshaft
Brand: Wuxi Smart CNC Equipment Group Co.,LTD
SKU: SYA-250
Price: 12,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SMART CNC

Certification: CE ISO TUV

Model Number: SYA-250

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude

Supply Ability: 50 sets/months

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                mechanical power press machine, pneumatic power press machine


Pressure:	250ton	Delivery Time:	70days
Warranty Time:	Two Years	Table:	1150x650mm
Hydraulic:	USA	Electrical:	SIEMENS

Pressure:	250ton
Delivery Time:	70days
Warranty Time:	Two Years
Table:	1150x650mm
Hydraulic:	USA
Electrical:	SIEMENS

Product Description

250 ton Hydraulic Power Source Punching Machine In China, China Supplier Manufacturer Exporter In Punching Press

Features:

With double crankshaft, welded frame and square guide ways, the machine has the ability of anti-eccentrical load and high precision, which assures high efficiency and high quality production.
The press adopts hydraulic overload protector and PLC controller.
Feeding shaft, air cushion can be supplied according to customers' requirements.

High Precision Presses Standard Accessories

Hydraulic overload protection device
Manual type, electrical Lubrication uncrating device
Slider and die balance device
The rotary cam controller
Pointer crankshaft angle display
Intelligent travel counter
The shockproof rubber cushion or mechanical foot slider expected device
The main motor reversing device
The operating instructions

Optional accessories

The slider expected device
Pneumatic die cushion lifting device
Photoelectrical safety device
Mould lighting device
Preload counter
Preset counter
Check how dead the next
The foot operated switch
For mold, mold clamp mold moving arm or
Feeding machine, feeder, leveling machine
Electronic crank angle display • Air source socket
The air blowing device
The variable frequency variable speed motor
The fault detecting device
The power supply socket
Maintenance tools and tool kit

Specification

Specification	Unite	SYA-25			SYA-35		SYA-45		SYA-60
Model		V	H	S	V	H	V	H	V	H
Capacity	Ton	25			35		45		60
Rated tonnage point	mm	3.2	1.6	3.2	3.2	1.6	3.2	1.6	4	2
Speed changing	S.p.m	60-140	130-200	60-120	40-120	110-180	40-100	110-150	35-90	80-120
Stable speed	S.p.m		110	110		85	75		65
Stroke	mm	70	30	80	70	40	80	50	120	60
Die height	mm	195	215	190	220	235	250	265	10	340
Slide adjustment	mm	50		50	55		60		75
Slide area	mm	300×230×50			360×250×50		400×300×60		500×360×70
Bolster area	mm	680×300×70			800×400×70		850×440×80		900×500×80
Shank hole	mm	Ø38.1			Ø38.1		Ø38.1		Ø50
Main motor	Kw.p	3.7×4			3.7×4		5.5×4		5.5×4
Slide adjust device	HP	manual operation
Air pressure	Kg/cm²	6			6		6		6
Presses precision		GB/JIS 1class
Presses dimension	mm	1280×850×2200			1380×900×2400		1600×950×2500		1600×1000×2800
Presses weight	Ton	2.1			3		3.8		5.6
Die cushion capacity	Ton	-			2.3		2.3		3.6
Stroke	mm	-			50		50		70
Die cushion effective area	mm²	-			300×230		300×230		350×300

SYA-80		SYA-110		SYA-160		SYA-200		SYA-260		SYA-315		SYA-400
V	H	V	H	V	H	V	H	V	H	V	H	V	H
80		110		160		200		260		315		400
4	2	6	3	6	3	6	3	7	3.5	8	4	8	4
35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	30-50	20-40	30-50
65		50		35		35		30		30		30
150	70	180	80	200	90	200	100	250	150	250	150	250	150
340	380	360	410	460	510	460	510	500	550	500	550	550	600
80		80		100		110		120		120		120
560×420×70		650×470×80		700×550×90		850×630×90		950×700×100		1250×750×100		1350×800×100
1000×550×90		1150×600×110		1250×800×140		1400×820×160		1500×840×180		1600×860×190		1650×900×200
Ø50		Ø50		Ø65		Ø65		Ø65		Ø65		Ø65
7.5×4		11×4		15×4		18.5×4		22×4		30×4		37×4
electrical driving
6		6		6		6		6		6		6
GB/JIS 1class
1800×1180×2800		1900×1300×3200		2300×1400×3800		2615×1690×4075		2780×1850×4470		2910×1950×4500		3180×2150×5025
6.5		9.6		16		23		32		35		40
3.6		6.3		14		14		14		14		14
70		80		80		100		100		100		100
450×310		500×350		650×420		710×480		710×480		710×480		710×480

250 Ton Automatic Power Press Machine High Efficiency With Double Crankshaft 0
