CNC Mechanical Turret Punching Machine 28 Station Energy Conservation

CNC Mechanical Turret Punching Machine 30 Ton Pressure 1250×5000 Working Table For Cabinet Industry

One. Machine main technical parameter

1.  Adopts FANUC / Rexroth CNC system and servo module, with quick response and high precision.

2.  X axis adopts double guide rail for guiding, gear rack for driving, it is very stable with high-speed and high precision, reached the international level.

3.  Five-axis all electric control, can realize punching, stretching, and roller forming etc technology, it is suitable for precision sheet metal processing.

4.  Energy conservation, standby without electricity consumption, effectively reduce energy consumption; Can choose downy mode, quiet and environment protection.

5.  Economy type built-in flywheel CNC turret punching machine, adopts Germany advanced numerical control special system, equipped with digital AC servo motor, speed is more faster and stability is higher.

6.  Adopt imported brand servo motor, guide rail, screw, electrical component and pneumatic component.

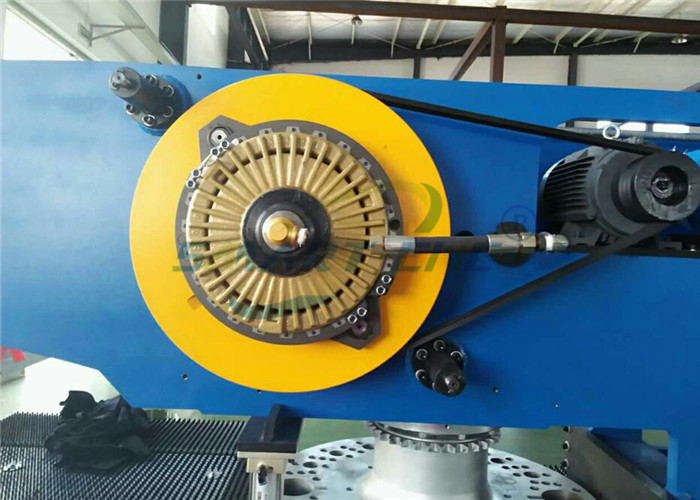

7.  Adopt imported clutch, brake in time, top and tottom dead point positioning accuracy.

8.  Adopts AMD standard casting integrated type thick yurret mold disc and AMADA standard thick turret international molds.

9.  Adopt full float type pneumatic clamp, punching, sheet can float up and down together, effectively eliminate stamping spare capacity, improve processing precision.

10.  Equipped with concentrated lubricating device, reduce kinematic pair friction, improve service life.

Advantages:

1.  We are China Leading CNC Turret Punching Machine Manufacturer.

2.  Alibaba Assessed Gold Supplier.

3.  Inspected by the Inspection Institution of Bureau Veritas Certification.

4.  100% QC inspection Before Shipment.

5.  Best Quality & Best Service with Competitive price.

6.  Customized, Meet your needs.

7.  Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).

8.  Exquisite appearance (mature craft).

9.  Large factories, Prompt delivery.

10.  Strict quality inspection department.

11.  Factory direct selling with competitive price.

12.  Over 10 years' production experience.

13.  Professional design team to serve you.

14.  CE certificate assure you our quality.


Two. Machine content description
1.  Control system: Adopt Spain Fagor/Siemens cnc system, semi-closed loop control, cooperate with Estun numerical control punch servo module, which can realize four axis control at the same time, Equipped with USB, R232 communication interface which can realize the front desk, backstage programming.
Software:Adopts CNCKAD software can realize AutoCAD graphics automatically converts processing procedure, bring their own mould library management, automatic optimization of processing path, realize plank material automatic relocation, plate automatic relocation, no dead zone for processing; The operation is simple, and can realize one-click operation;
2.  Stamping subject:Fuselage is O type Steel welding, the whole pass by tempering treatment, make sure the equipment good appearance and long-term stability;
3.  Turret Organization:Adopt high strength nodular cast iron to cast into integral thick turret mould plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mould service life;
4.  Mould: adopts AMADA standard thick turret mould, convenient for daily maintenance and procurement;
5.  Motor/drive: Aston high-power servo motor and servo drive system, speed 3000 r/min, high feeding speed, high precision;
6.  Transport Ball Screws: Germany Ball Screws, attainability 5 grade precision;
7.  Guide Rail: Taiwan Linear Guide, With Wider Flange-type Slider to ensure the equipment operating more stability;
8.  Orientation Cylinder:Import Korea brand cylinder to achieve precise positioning of the purpose of locking;
9.  Reducer: Precision turbine worm reducer, with band-type brake function, reduce the impact to the servo motor after the mold high-speed operating, at the same time guarantee the turret high-speed positioning accuracy;
10.  Clamp:Adopt float type pneumatic clamp, can be together with plates float, avoid plates distortion;
11.  Working table:High quality brush steel ball mixed countertops, greatly reduces the friction plate movement, effective protection plate surface;
12.  Lubricating system:Adopt the automatic control system of oil station, according to the preset time, guide rail, screw etc main transmission mechanism can realize automatic centralized lubrication;
13.  Main electrical components:relays, photoelectric sensors, contactor, etc all adopt the Omron and Schneider brand, long-term guarantee the safety of the device;
14．Rotating station: Adopt the standard structure of worm and worm wheel rotating mechanism, the whole mechanism is processed by high precision grinding processing equipment, fully guarantee the centring of upper and lower mould after long-term rotation of rotating station, increase the service life of mould, effectively solve the difficulty of arbitrary Angle punching and trimming;
15.  Stamping main servo system: Adopting ESTON high-power servo motor, punch frequency up to 1900 times, punch force stable, using water cooling, the stability is higher.
Three. Configuration list

CNC Turret Punch Specification

Model name		CNC Mechanical Punch			CNC Hydraulic Punch		CNC full servo Punch
Product model		SKC30-16	SKC30-24	SKCX30-24	SKTC30-24	SKYC30-32	SKSC30-32	SKSC30-36
Nominal force	KN	300	300	300	300	300	300	300
Working table size	mm	1250×2500,3200,4000,5000 1500×2500,3200,4000,5000
Station number	Pieces	16	24	24	24	32	32	36
Max.punching diameter	mm	Ø88.9	Ø88.9	Ø88.9	Ø88.9	Ø88.9	Ø88.9	Ø88.9
Rotation station Max.punching diameter	mm	no	no	Ø50.8	Ø50.8	Ø50.8	Ø50.8	Ø50.8
Controlling axes	Piece	3	3	4	4	4	5	5
Working accuracy	mm	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
Punching frequency	Hpm	160~250	160~250	160~250	0~500	0~500	0~500	0~500
Max.move speed for plate	m/min	60	60	60	60	60	60	60
Max.plate thickness	mm	6	6	6	6	6	6	5
Air pressure	Mpa	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Power	KW	18	20	21	28	28
