Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE ISO TUV |
Model Number: | 3mm |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Nude |
Delivery Time: | 90 days |
Supply Ability: | 10 sets/month |
Weight: | 30000kgs | Material Width Range: | 1600mm |
---|---|---|---|
Material Thickness: | 3mm-2500mm | Delivery Time: | 90 Days |
Warranty Time: | One Years | Material: | GI,SS,HR |
Highlight: | automatic cut to length machines,steel cut to length machine |

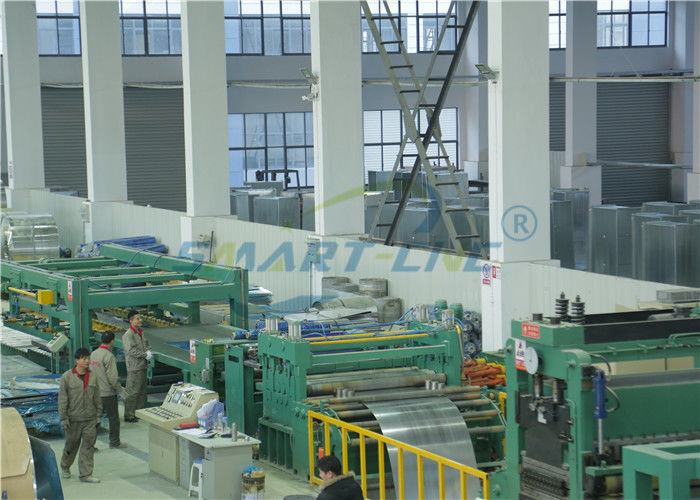

3×1600 Cut To Length Line Of Steel Coil And Cross Cutting Machine,Coil Slitting Line
1. Usage
Cut to length line machine is used to cutting a certain width and thick steel plate transverselly to a present length, then be packed to plate stacks. It applies to hot/cold rolled/galvanized steel coil, low-alloy steel in the fields of welded pipe production factory, steel processing, and other steel products industry such as metallurgy, transportation, vehicle industry, etc. This production line is PLC control, it possesses characters of high level automation, high shear accuracy, good strip dividing quality and wide application scope.
2. Main composed parts
3. Main technical parameter
Type | Thickness Range | Width Range | Cutting Length | Cutting Precision | Roller Numbers | Roller Diameter |
3*1600 | 0.3-3.0mm | 1600mm | 300-4000mm | ±0.5 | 15 | Φ85 |
6*2000 | 1-6mm | 2000mm | 500-6000mm | ±0.5 | 15 | Φ140 |
8*2000 | 2-8mm | 2000mm | 600-8000mm | ±1 | 13 | Φ155 |
10*2200 | 2-10mm | 2200mm | 600-10000mm | ±1 | 13 | Φ160 |
12*2200 | 3-12mm | 2200mm | 800-12000mm | ±1 | 11 | Φ180 |
16*2200 | 4-16mm | 2200mm | 800-12000mm | ±1 | 11 | Φ200 |
20*2500 | 6-20mm | 2500mm | 800-12000mm | ±1 | 9 | Φ230 |
25*2500 | 8-25mm | 2500mm | 800-12000mm | ±1 | 9 | Φ260 |
