Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE ISO TUV |
Model Number: | 2-WE67K-300/6000 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Nude |
Delivery Time: | 80 days |
Supply Ability: | 10 SET/Month |
Name: | CNC Tandem Press Brake | Pressure: | 3000KN |
---|---|---|---|
Length: | 6000mm | Axis: | 2 Axis |
Speed: | 70mm/s | Weight: | 110000kgs |
Motor: | Siemens | Types: | Hydraulic |
Highlight: | cnc metal brake,cnc bending machine |

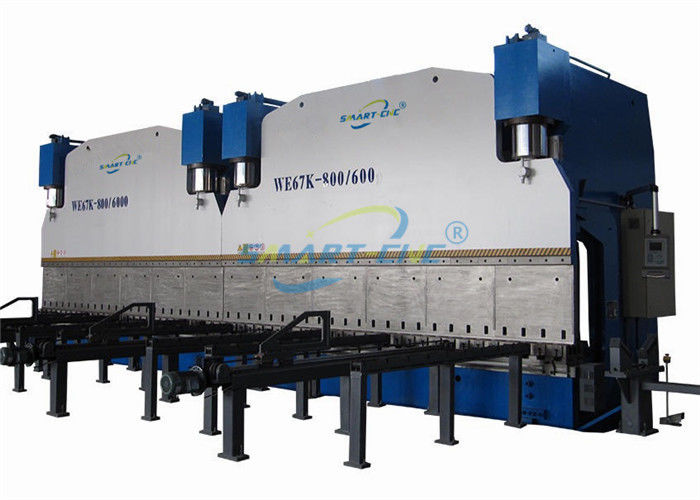

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles 300ton 600ton 800ton 1200ton
Quick Detail:
Metal Plates Hydraulic CNC Tandem Press Brake for auto industry
Select And Use DELEM DA52 CNC Control System
Description:
1. Electro-hydraulic servo system,closed loop controls slider running accuracy.
2. The unique patented technology:bilateral deflection compensation of the large press brake .
3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.
5. The frame of machine is composed of tank, worktable, left and right housings and
ram. So it has high strength and good rigidity. Also it takes vibration to eliminate
stress.
6. Synchronization working principal of both machines:Adopting electric-hydraulic
proportional valve to ensure the synchronization of both machines.
7. Through computer, the operator could communicate with machine.
8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life
Applications:
CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Machine Parameters
Model | Working Force (KN) | Worktable Length (mm) | Throat Depth (mm) | Open Height (mm) | Dimension (mm) |
2-320/6000 | 2x3200 | 2x6000 | 720 | 870 | 2-6250x2614x5470 |
2-400/7000 | 2x4000 | 2x7000 | 720 | 870 | 2-7250x5170x5970 |
2-600/6000 | 2x6000 | 2x6000 | 1000 | 1000 | 2-6240x5960x5500 |
2-1000/6000 | 2x10000 | 2x6000 | 1400 | 1400 | 2-6240x6500x6600 |
2-1600/6000 | 2x16000 | 2x6000 | 1100 | 1250 | 2-9240x8200x8250 |
2-2000/9000 | 2x20000 | 2x9000 | 1600 | 1600 | 2-9240x9050x8800 |
