Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO, TUV
Model Number: 3×1600
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 40000-60000 USD
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Warranty: |
12 Months |
Voltage: |
As Customers Request |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
2*2*2m |
Certification:: |
CE |
Speed: |
0-20m/min |
Warranty: |
12 Months |
Voltage: |
As Customers Request |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
2*2*2m |
Certification:: |
CE |
Speed: |
0-20m/min |

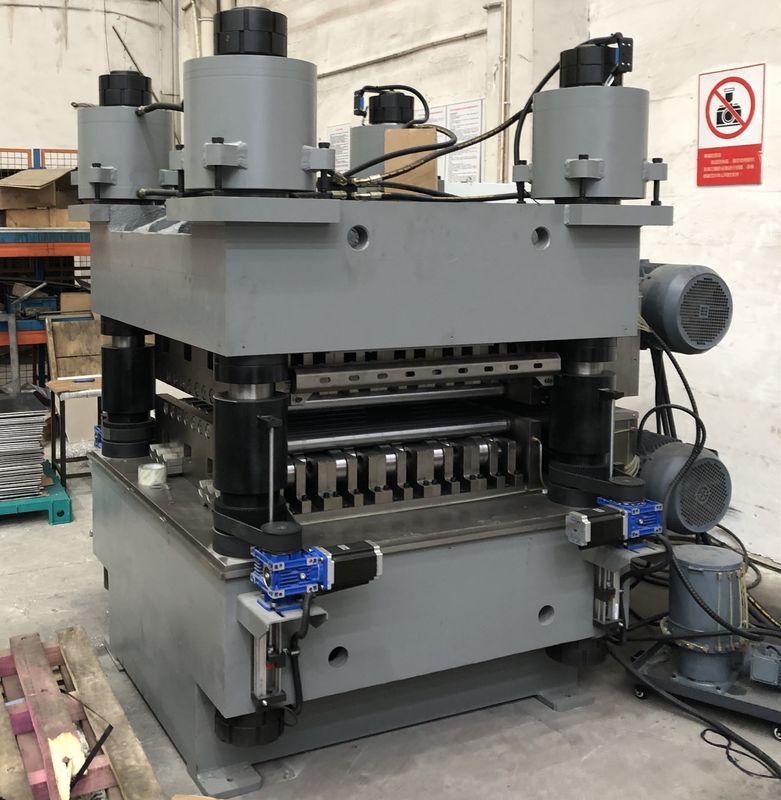

Servo CNC Plate Steel Metal Sheet Flat Leveling Machine for Buliding Construction
Features:
W43-series plate leveling machine is dedicated to the cold metal sheet, take advantage of a number of roller works, so that the sheet metal works between the upper and lower rollers repeated, deformation and relief stress, changing a variety of original curvature and gradually becomes single curvature(bauschinger effect)to achieve the objective of the plain. As the precision request, in the upper and lower work roller lateral, set rigid support roller(wheel), constitute a quadruple-group or six-group roll structure.
Advantages:
When metal through the leveling machine, can significantly improve their flat state, improve the quality of the workpiece.
It can work independently, for single sheets of plain. also can configure open-book, cited material, cutting, and stacking behind configuration and online agencies, among others, by controlling the system into a complete production line.
Technical data
|
Model |
SM-3×1600 |
|
|
Function
|
Plate thickness |
0.8-3mm |
|
Max plate thickness |
5mm |
|
|
Width |
1600mm |
|
|
Diameter for roller |
Φ50mm |
|
|
Leveling quantity |
21 |
|
|
Leveling roller |
Supporter for leveling |
Supporter bearing |
|
HRC for leveling roller |
HRC 58-63 |
|
|
Precision |
Precision grinding |
|
|
Adjust for leveling roller |
Servo |
|
|
System
|
Controller |
CNC |
|
Distance for check |
Shift sensor |
|
|
Line speed
|
Speed |
1 -6 m/min
|
|
Driven model |
Leveling roller |
Servo |
|
Machine driven |
Frequency converter/AC motor |
|
|
Bearing |
Seal for bearing |
rotary shaft seal |
|
Power |
Customized |
|
Configuration
CNC Controller Delta Taiwan
Servo motor Mitsubishi Japan
Servo driver Mitsubishi Japan
Transformer Mitsubishi Japan
Shift sensor Taiwan
Electrical Schneider
