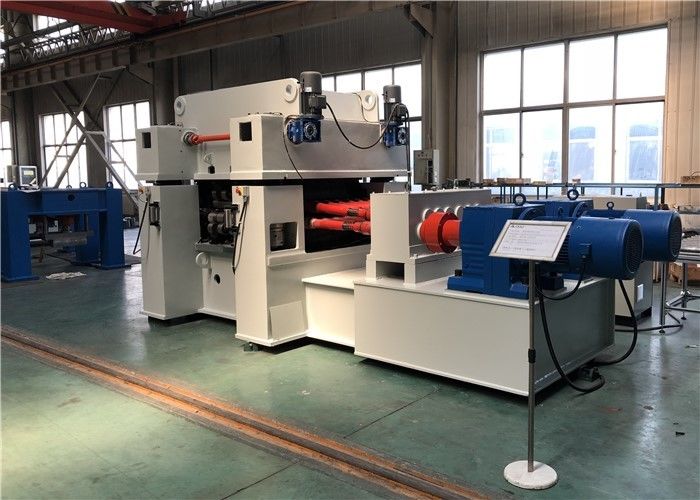

Automatic CNC Plate Leveling Machine for Carbon Steel Plate
The Automatic CNC Plate Leveling Machineadopts multi rolls working method, the sheet is fed into the centre of the working rolls, after repeated extrusion, to reach the aim of eliminating the stress and straight the sheet.
Function and characteristic
Suitable for carbon steel plate, stainless steel plate, aluminum plate and various metal plates.
1. The machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group support rolls.
2. Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3. Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
4. Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5. Distribution box: self-made; it employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
6. Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7. Adjustment methods: manual and electrical adjustment.
8. Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9. Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
10. We can design and produce for special requirements.
Technical data
Model |
SM-3×1600 |
|
Function
|
Plate thickness |
0.8-3mm |
Max plate thickness |
5mm |
|
Width |
1600mm |
|
Diameter for roller |
Φ50mm |
|
Leveling quantity |
21 |
|
Leveling roller |
Supporter for leveling |
Supporter bearing |
HRC for leveling roller |
HRC 58-63 |
|
Precision |
Precision grinding |
|
Adjust for leveling roller |
Servo |
|
System
|
Controller |
CNC |
Distance for check |
Shift sensor |
|
Line speed
|
Speed |
1 -6 m/min
|
Driven model |
Leveling roller |
Servo |
Machine driven |
Frequency converter/AC motor |
|
Bearing |
Seal for bearing |
rotary shaft seal |
Power |
Customized |
Configuration
CNC Controller Delta Taiwan
Servo motor Mitsubishi Japan
Servo driver Mitsubishi Japan
Transformer Mitsubishi Japan
Shift sensor Taiwan
Electrical Schneider
