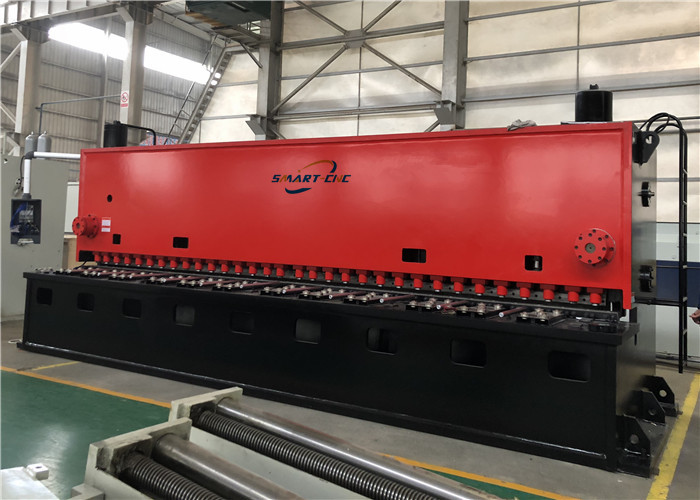

Hydraulic Sheet Metal Guillotine Shearing Machine

QC12Y QC11Y Amada Hydraulic Shearing Machine 16mm 18mm 25mm 600mm,Q11 Series Mechanical Shearing Machine

The machine quoted in this paper is Various Rank QC11Y HYDRAULIC SHEARING MACHINE.

THE MAIN CHARACTER

1. All machine body is welded assembly by high quality steels from CHINA BAO STEEL ENTERPRISE. After welding procedure, the machine body will be milled to ensure the balance and precision.

2. Mechanical block inside the cylinder to avoid the beam stroke out of gauge.

3. Motor drive control for blade clearance.

4. The machine has adopted ESTUN E21S CNC system, the back-gauge can go to position accurately. The precision is ±0.1MM if frequency transformer is used.

5. All the electronic elements are from CE standard European machine SIMENS, SCHNEIDER. with high stability

6. Thermal limit of the back-gauge working distance to avoid out of gauge broken.

7. Humanistic concern security design in all details and also the scientific details through SIECC standard.

8. All blade use rectangle shear blade and high rigidity and intensity material, 4 edges of shearing blade.

9. Lightening line function to guide convenient shearing

10. Tailored inclined platform for sheared plate taking-off

11. Ball feeding table or roller feeding table

12. Continuous shear automatically to enhance the efficiency greatly

THE STANDARD COMPONENTS

1. ESUNTUN E21 CNC SYSTEM

2. SIEMENS OR SCHNEIDER ELECTRONIC ELEMENTS

3. USA PARKER SEAL

4. GERMANY REXORTH HYDRAULIC SYSTEM

5. CHINA YONGSHUN HIGH QUALITY GEAR PUMP

6. SIEMENS MOTOR or CHINA FAR EAST Motor (Because of SIEMENS Motor made in China has long delivery period, if the special voltage , we will not use SIEMENS unless the client can accept the long delivery period for machine also. Mostly the normal voltage , the delivery is 30 days for motor. We also use a lot of Motor named CHINA FAR EAST, it’s quality has been proved with several years working. )

7. CHINA JIANHU CYLINDER HAS CHROMATE TREATMETN

8. BLADE MATERIAL: 9CrSi

9. BACK-GAUGE: ALLOY HIGH QUALITY STANDARD

10. PIPES : ANTI-RUST PHOSPHORIZATION PIPES WITH BOTH INSIDE AND OUTSIDE ANTI-RUST TREATED

11. PIPE CONNECTOR: HIGH QUALITY CONNCTOR FROM SHANGHAI COMPANY WITH HIGH QUALTY SEAL INSIDE TO PREVEND THE LEAKAGE OF THE HYDRAULC OIL.

12. REAR DOOR WITH PHOTO-ELECTRIC PROTECTION,ANYBODY INSIDE,HE MACHINE WILL STOP AUTOMATICALLY.

13. BOTH ENTRANCE AND EXIST OF THE HYDRAULIC OIL TANK, FILTER IS EQUIPPED.

14. DOUBLE CLAMP AT THE LEFT SIDE FOR THE SMALL SLIP TO BE PRESS WITHOUT ANY MOVEMNET AND CONVENIENT FOR PRECISION SHEARING NEEDS

 OPTIONAL COMPONENTS

1. THE STANDARD BLADE MATERIAL IS 9CrSi, 6CrW2Si IS MORE HARDER AND LONG-TIME USAGE ACCORDING TO THE REQUIREMENT

2. THE AUTOMATIC SELF-LUBRICATION SYSTEM.

3. PNEUMATIC SUPPORTING SYSTEM FOR LONGER BACKGAUGE INTO MORE THAN 1000MM DISTANCE
