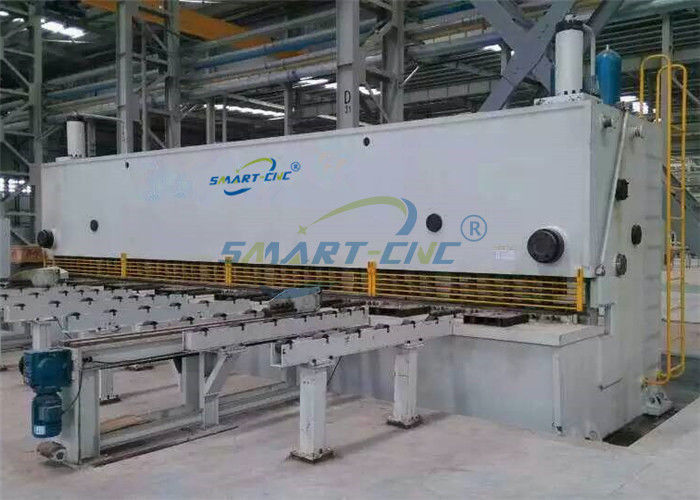

6000mm CNC Guillotine Shearing Machine Whole Steel Welded Structure

QC11K-20×6000 Hydraulic Guillotine Shearing Machine Cnc Sheet Metal Cutting Machine Automatic Metal Cutting Machine

Performance characteristics

Our Guillotine Shearing Machines are manufactured for a world wide market;
Our Quality Guillotine Shearing Machine feature high durability, and provide precision shearing capabilities, The Guillotine Shearing Machine main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the shearing process and under extreme continuous loads;
Our Guillotine Shearing Machines are produced in high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment;
This heavy duty over driven style, fixed rake Guillotine Shearing Machine has been developed for shearing material from mild steel through to stainless steel due to the specially designed shearing blades with characteristics of High resistance to wear, High resistance to corrosion, High resistance to impact, High tensile strength;
All electrical components are adopted at Schneider, French. Famous brand Hydraulic control valve unit supplied by Shanghai Hydraulic (Optional: Rexroth, Germany);

STANDARD EQUIPMENTS
√  Hardened blades.
-  Top blades : 4 sides
-  Bottom blades : 4 sides
√  E21S controller.
√  150mm throat depth.
√  600mm motorized backgauge system with 0,1 mm accuracy.
√  800mm side gauge and front support arms.
√  Metric and inch rulers.
√  Front, side and back safety panels which are suitable for CE norms.
√  Sheet sliding system.
√  Schneider Electric System.
√  Rexroth hydraulic system.
√  Hold down cylinders.
√  Moveable foot pedal.
√  Electric blade gap adjustment.
√  Emergency stop button.
√  Collapsible finger protection.

OPTIONAL EQUIPMENTS
√  Optional throat depth.
√  Front angle gauge.
√  Side gauge and front support arms in optional lengths.
√  Sheet conveyor and stacking system.
√  Front Gauge X1, X2 axis and backgauge X3, X4 axis.
√  Optional backgauge stroke.
√  Sheet support system for thin sheets.
1-  Pneumatic support system. (Lever type)
2-  Pneumatic support system. (Monobloc panel type)
√  Hydraulic oil cooling and heating system.
√  Optional solid table.
√  Stainless steel blades.
√  Ability to increase stroke amount per minute.
√  Light safety system for finger protection.
√  Optional alternative colors.
√  Coolant system or heater can be placed in electric panel during ambient conditions.
√  Double foot pedal.
√  Electrical panel or controller can be placed on right side of the machine.
√  Laser cutting line.
√  Central lubrication system.

MAIN SPECIFICATIONS
