Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | Y41-25Ton |
Minimum Order Quantity: | 1 sets |
Packaging Details: | Wooden case |
Delivery Time: | 3 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Warranty: | 12 Months | Product Name: | Hydraulic Press Machine |
---|---|---|---|
Application: | Metal Sheet Stamping | Keyword: | C Frame Hydraulic Press Machine |
Name: | 40Ton Single Column C Frame Hydraulic Press Machine | Usage: | Pressing Metal Products |
High Light: | 100T Hydraulic Bench Press,20MPa Hydraulic Bench Press,TUV Hydraulic Bench Press |
Y41 Single Column Powder Compacting Hydraulic Bench Press 25-100 ton

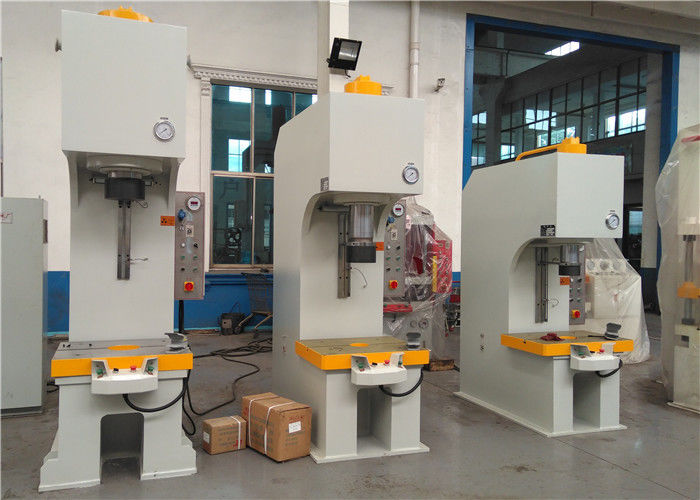

Y41 C Frame 25 ton hydraulic press with single column
One kind of multifunctional medium-small hydraulic press.
It can be used in bearings and moulding, also suitable for bearings and sleeves.
At the same time,the machine can complete the technology function of bending, shelling of plate material parts, stretching of simple parts, pressing powder, plastic products, etc.
It is mainly suitable for metal sheet curveting, flattening, stretching, stamping, shaft parts coupling, powder and plastic forming. This product is applied in the machine tool, automotive, motor vehicles, air-conditioned shell, mechanical bearings, powder metallurgy, and plastic industry.
No
|
Items
|
Unit
|
Y41-25T
|
1
|
Nominal force
|
KN
|
250
|
2
|
Max open height
|
mm
|
560
|
3
|
System working pressure
|
MPa
|
20
|
4
|
Throat depth
|
mm
|
200
|
5
|
Slide stroke
|
mm
|
300
|
6
|
Down
|
mm/s
|
60
|
7
|
Slide speed Return
|
mm/s
|
60
|
8
|
Work
|
mm/s
|
8-12
|
9
|
Worktable size
|
mm
|
500*400
|
10
|
Dimension
|
mm
|
1100*650*2050
|
11
|
Motor power
|
KW
|
3
|
