Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE ISO TUV |
Model Number: | MS6-8×3200 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Nude |
Delivery Time: | 30 |
Supply Ability: | 50 SETS/MONTHS |
Types: | NC | Plate Thickness: | 8mm |
---|---|---|---|
Length: | 3200 | Controller: | Italy |
Motor: | Siemens | Weight: | 8500kgs |
Highlight: | hydraulic guillotine shearing machine,cnc guillotine shearing machine |

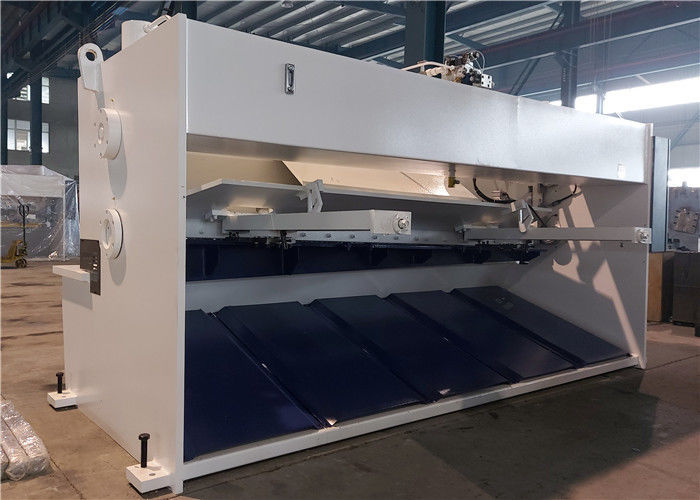

Qc11y Qc12y 6x3200 6mm 12mm Shear Amada The Most Expensive High Precision Speed Mini Small Hydraulic Metal Cutting Shearing Machine
Product Application
QC11Y hydraulic guillotine shear is the most widely used in the metal shearing. It is user-friendly and easy for the starter. It has stable quality, and is easy for maintenance and repair. It not only has unique advantages in the whole series of shears ,but also be favored worldwide for its easy operation.
Main Features
1. Totally European design, streamlined looking. Monoblock steel welding frame and stress relief process by Annealing treatment.
2. Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
3. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
4. The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
5. System uses a bladder-type hydraulic accumulator as an auxiliary energy, absorb the pressure shock, the machine is running smoothly with low noise
6. Shearing angle is adjustable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
7. European key electrics with good reliability and long working life.
8. Sliding balls/rolls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
9. All seals in cylinder is imported, the most famous brand, good quality and high performance
10. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage
11. The distance of the backgauge is adjusted by the motor.
12. Digital display device for distance of back gauge and shearing times available.
13. The portable and prompt motorized blade gap adjustment.
14. Adopt integrated hydraulic system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
15. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
16. Humanistic concern security design in all details and also the scientific details through KINGWELL standard.
Standard Equipment
1. Rapid and precise motorized blade clearance adjustment on the side frame
2. High quality, hardened and grinded top and bottom blades. Tope blades with four cutting edges and bottom blades with four cutting edges.
3. Counter of Strokes, Cutting Length Adjustment
4. Hydraulic and Electrical overload protection
5. Squaring Arm and Front Support Arms
6. Built-in Spring Pressure Cylinder
7. SIEMENS Motor or China XINYU High Quality Motor (Because SIEMENS motor made in China has long delivery period, if the special voltage , we will not use SIEMENS unless the client can accept the long delivery period for machine also. Mostly the normal voltage , the delivery is 30-40 working days for motor. We also use a lot of Motor named CHINA XINYU, its quality has been proved with several years working. )
8. Germany Bosch Rexroth Hydraulic System or CHINA Top Level HONGWEI Hydraulic System.
9. USA SUNNY Hydraulic Gear Pump or CHINA Shanghai YONGMING High Quality Hydraulic Gear Pump which is used for Chinese Aircraft Industry.
10. JAPAN VALQUA sealing parts.
11. Germany JS tubing connector.
12 Germany SIEMENS or France SCHNEIDER Main Electric Elements.
13. HIWIN Ball screws & Polished rod with 0,05mm accuracy.
14. E21s Economic NC controller system
MAIN SPECIFICATIONS
Type Name | Shear angle(°) |
Stroke (n/min) |
Throat depth(mm) | Table height(mm) |
Back gauge range(mm) |
Motor (KW) |
Overall dim (L×W×H) (mm) |
Weight (kg) |
QC11Y-6×2500 | 0.5°-2° | 15-30 | 100 | 810 | 10~800 | 11 | 3310×2360×2100 | 6600 |
QC11Y-6×3200 | 0.5°-2° | 15-30 | 100 | 810 | 10~800 | 11 | 4010×2329×2100 | 7800 |
QC11Y-6×4000 | 0.5°-2° | 8-15 | 100 | 900 | 10~800 | 11 | 4815×2345×2490 | 10600 |
QC11Y-6×6000 | 0.5°-2° | 8-15 | 100 | 900 | 10~800 | 15 | 6500×2200×2260 | 23000 |
QC11Y-8×2500 | 0.5°-2° | 12-24 | 100 | 810 | 10~800 | 15 | 3032×2387×2380 | 7700 |
QC11Y-8×3200 | 0.5°-2° | 12-24 | 100 | 810 | 10~800 | 15 | 4040×2342×2380 | 9000 |
QC11Y-8×4000 | 0.5°-2° | 12-24 | 100 | 810 | 10~800 | 15 | 4868×2387×2380 | 9800 |
QC11Y-8×5000 | 0.5°-2° | 5-10 | 300 | 810 | 10~800 | 22 | 5800×2500×2300 | 17500 |
QC11Y-8×6000 | 0.5°-2° | 5-10 | 300 | 810 | 10~800 | 22 | 6700×2560×2300 | 28000 |
QC11Y-8×8000 | 0.5°-2° | 4-10 | 300 | 850 | 10~1000 | 30 | 9140×3500×3502 | 54875 |
QC11Y-8×10000 | 0.5°-2° | 4-10 | 300 | 850 | 10~1000 | 30 | 11035×3885×4720 | 71120 |
QC11Y-10×6000 | 0.5°-2.5° | 5-12 | 300 | 800 | 10~1000 | 37 | 7342×3625×3797 | 37000 |
QC11Y-10×8000 | 0.5°-2° | 5-8 | 300 | 880 | 20~1000 | 37 | 8935×2710×3670 | 55000 |
QC11Y-10×10000 | 0.5°-2° | 4-10 | 300 | 960 | 20~1000 | 45 | 11115×3400×5740 | 98550 |
QC11Y-10×12000 | 0.5°-2° | 4-10 | 300 | 960 | 20~1000 | 45 | 13115×6740×5580 | 122800 |
QC11Y-12×2500 | 0.5°-2.5° | 6-15 | 100 | 900 | 10~800 | 18.5 | 3430×2460×2576 | 9358 |
QC11Y-12×3200 | 0.5°-2.5° | 6-15 | 100 | 900 | 10~1000 | 18.5 | 3950×2300×2550 | 11500 |
QC11Y-12×4000 | 0.5°-2.5° | 7-14 | 100 | 810 | 10~1000 | 22 | 4610×2867×2641 | 14000 |
QC11Y-12×5000 | 0.5°-2.5° | 7-14 | 100 | 890 | 10~1000 | 22 | 5655×3570×2841 | 20150 |
QC11Y-12×6000 | 0.5°-3° | 7-14 | 100 | 890 | 10~1000 | 37 | 7230×2740×3840 | 39000 |
QC11Y-12×7200 | 0.5°-2.5° | 10-20 | 100 | 900 | 10~1000 | 45 | 8000×3910×3750 | 55150 |
QC11Y-12×8000 | 0.5°-2.5° | 10-20 | 100 | 900 | 10~1000 | 45 | 8950×3910×3760 | 60100 |
QC11Y-13×2500 | 0.5°-2.5° | 6-15 | 100 | 900 | 10~1000 | 18.5 | 3430X2725X2575 | 9800 |
QC11Y-13×3200 | 0.5°-2.5° | 6-15 | 100 | 900 | 10-1000 | 18.5 | 3810X3060X2546 | 11500 |
QC11Y-13×6000 | 0.5°-3° | 7-14 | 300 | 800 | 10-1000 | 37 | 7035×2740×3825 | 39300 |
QC11Y-13×7000 | 0.5°-3° | 7-14 | 300 | 1000 | 10-1000 | 37 | 8370×3900×3825 | 45000 |
QC11Y-13×8000 | 0.5°-2.5° | 5-10 | 300 | 850 | 10-1000 | 55 | 8950×2710×3060 | 6400 |
QC11Y-13×9000 | 0.5°-2.5° | 5-10 | 300 | 850 | 10-1000 | 55 | 11450×7310×3760 | 76500 |
QC11Y-13×12000 | 0.5°-2° | 4-10 | 100 | 960 | 10-800 | 2×45 | 13275×5470×6610 | 16600 |
QC11Y-14×12000 | 0.5°-2° | 4-10 | 100 | 960 | 10-800 | 2×45 | 13275×5470×6610 | 16600 |
QC11Y-16×2500 | 0.5°-2.5° | 7-10 | 100 | 810 | 10-1000 | 22 | 3220×2753×2675 | 13400 |
QC11Y-16×3200 | 0.5°-2.5° | 7-15 | 100 | 810 | 10-1000 | 30 | 3930×2985×2810 | 15300 |
QC11Y-16×4000 | 0.5°-2.5° | 7-15 | 100 | 950 | 10-1000 | 30 | 4905×3142×2580 | 20630 |
QC11Y-16×5000 | 0.5°-2.5° | 7-15 | 100 | 970 | 10-1000 | 45 | 5928×3845×2848 | 30800 |
QC11Y-16×6000 | 0.5°-2.5° | 6-15 | 100 | 1000 | 10-1000 | 45 | 6952×2540×2820 | 42050 |
QC11Y-16×7000 | 0.5°-2.5° | 8~16 | 100 | 1000 | 10~1000 | 45 | 8050×2580×3535 | 52750 |
QC11Y-16×8000 | 0.5°-2.5° | 4~10 | 100 | 890 | 10~1000 | 45 | 9378×3545×4882 | 98860 |
QC11Y-16×9000 | 0.5°-2.5° | 4~8 | 100 | 890 | 10~1000 | 55 | 11110×7860×4982 | 106600 |
QC11Y-16×10000 | 0.5°-2.5° | 4~8 | 300 | 900 | 20~1000 | 55 | 11870×7728×5322 | 119288 |
QC11Y-16×12000 | 0.5°-2.5° | 4~8 | 100 | 900 | 20~1000 | 2×45 | 13873×6255×6800 | 187000 |
QC11Y-20×2500 | 0.5°-3° | 9-18 | 100 | 1000 | 20~1000 | 37 | 3640×3915×3240 | 22500 |
QC11Y-20×3200 | 0.5°-3° | 7-14 | 100 | 1000 | 20~1000 | 37 | 4340×3915×3040 | 24000 |
QC11Y-20×4000 | 0.5°-3° | 5-10 | 100 | 1000 | 20~1000 | 37 | 5070×3320×3150 | 27382 |
QC11Y-20×6200 | 0.5°-3° | 4-8 | 100 | 1000 | 20~1000 | 55 | 7438×2673×3875 | 58000 |
QC11Y-20×8200 | 0.5°-3° | 4-8 | 100 | 1000 | 20~1000 | 55 | 9976×7680×4631 | 100000 |
QC11Y-25×2500 | 0.5°-3 ° | 7~15 | 100 | 1000 | 20~1000 | 45 | 4690×3458×3235 | 22600 |
QC11Y-25×3200 | 0.5°-3 ° | 6~12 | 100 | 1000 | 20~1000 | 45 | 5390×3458×3235 | 26500 |
QC11Y-25×4000 | 0.5°-3 ° | 5~10 | 100 | 1000 | 20~1000 | 45 | 6190×3458×3235 | 29500 |
QC11Y-25×6200 | 0.5°-3° | 3-6 | 100 | 1000 | 20~1000 | 55 | 9335×5750×3930 | 61000 |
QC11Y-32×3200 | 0.5°-3.5 ° | 6-14 | 100 | 1000 | 20~1000 | 2×45 | 4310×2516×3583 | 37500 |
QC11Y-35×3000 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20~1000 | 2×55 | 8311×3010×4092 | 51380 |
QC11Y-35×3500 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20~1000 | 2×55 | 9019×3900×4062 | 57127 |
QC11Y-35×4000 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20~1000 | 2×55 | 10336×3900×4092 | 61500 |
