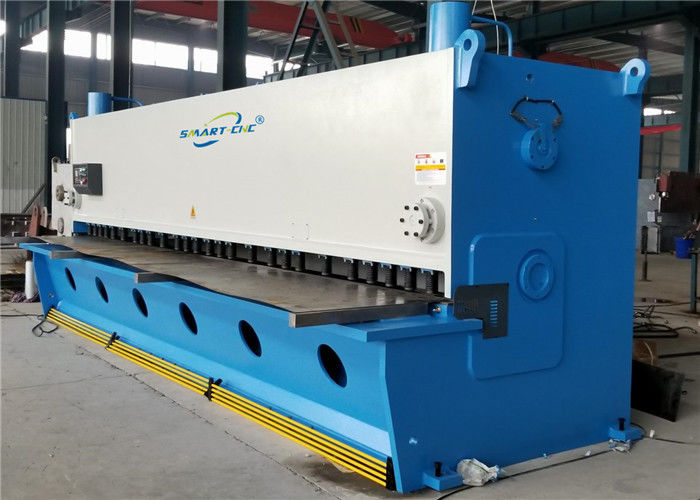

QC11K-10×6000 Cnc Shearing Machine Guillotine Shearing Machine Used Shearing Machine
Product Application
1 Steel welded,guillotine blade with great rigidity;
2 The internal stress is eliminated after welding; the frame is processed as a whole to improve the precision;
3 The blade clearance can be calculated automatically,which is convenient for operation.
4 Shearing angle is operated by the CNC System,when shearing the thick plate, the deflection is minished.
5 Liner navigation positioning driven by servo motor.
6 Great rigidity blade with 4 sides using;
7 Light lining,which is convenient for shearing
8 The special swaging,which can protect the plate being damaged.
E200(LED display,ball screw,linear guideway,servo motor) Major Elements:
1.Hydraulic system: Omega.
2.Electro parts: SIMENS.
3.Motors: SIMENS
4.Sealing: Valqua from Japan or DZ from Taiwan.
5.Oil pumps: From Shanghai.
6.Blades: From Shanghai.
7.Standards: According to <GB/T14349-93>.
8.Operation system:E200 by ESTUN.
DAC310 Major Elements:
CNC System:DAC310 System
Ball Screw:Taiwan
Hydraulic System:Rexroth .
Electro: Siemens or Omron
Major Motor:Siemens
Sealing Elements:Valqua from Japan or DZ from Taiwan
Oil Pump:From Shanghai
Blade:From Shanghai.6CrW2Si
DAC360 Major Elements:
CNC System:DAC360 System
Ball Screw:Taiwan
Hydraulic System:Rexroth .
Electro: Siemens or Omron
Major Motor:Siemens
Sealing Elements:Valqua from Japan or DZ from Taiwan
Oil Pump:From Shanghai
Blade:From Shanghai.6CrW2Si
MAIN SPECIFICATIONS
| Type Name | Shear angle(°) |
Stroke (n/min) |
Throat depth(mm) | Table height(mm) |
Back gauge range(mm) |
Motor (KW) |
Overall dim (L×W×H) (mm) |
Weight (kg) |
| QC11Y-6×2500 | 0.5°-2° | 15-30 | 100 | 810 | 10～800 | 11 | 3310×2360×2100 | 6600 |
| QC11Y-6×3200 | 0.5°-2° | 15-30 | 100 | 810 | 10～800 | 11 | 4010×2329×2100 | 7800 |
| QC11Y-6×4000 | 0.5°-2° | 8-15 | 100 | 900 | 10～800 | 11 | 4815×2345×2490 | 10600 |
| QC11Y-6×6000 | 0.5°-2° | 8-15 | 100 | 900 | 10～800 | 15 | 6500×2200×2260 | 23000 |
| QC11Y-8×2500 | 0.5°-2° | 12-24 | 100 | 810 | 10～800 | 15 | 3032×2387×2380 | 7700 |
| QC11Y-8×3200 | 0.5°-2° | 12-24 | 100 | 810 | 10～800 | 15 | 4040×2342×2380 | 9000 |
| QC11Y-8×4000 | 0.5°-2° | 12-24 | 100 | 810 | 10～800 | 15 | 4868×2387×2380 | 9800 |
| QC11Y-8×5000 | 0.5°-2° | 5-10 | 300 | 810 | 10～800 | 22 | 5800×2500×2300 | 17500 |
| QC11Y-8×6000 | 0.5°-2° | 5-10 | 300 | 810 | 10～800 | 22 | 6700×2560×2300 | 28000 |
| QC11Y-8×8000 | 0.5°-2° | 4-10 | 300 | 850 | 10～1000 | 30 | 9140×3500×3502 | 54875 |
| QC11Y-8×10000 | 0.5°-2° | 4-10 | 300 | 850 | 10～1000 | 30 | 11035×3885×4720 | 71120 |
| QC11Y-10×6000 | 0.5°-2.5° | 5-12 | 300 | 800 | 10～1000 | 37 | 7342×3625×3797 | 37000 |
| QC11Y-10×8000 | 0.5°-2° | 5-8 | 300 | 880 | 20～1000 | 37 | 8935×2710×3670 | 55000 |
| QC11Y-10×10000 | 0.5°-2° | 4-10 | 300 | 960 | 20～1000 | 45 | 11115×3400×5740 | 98550 |
| QC11Y-10×12000 | 0.5°-2° | 4-10 | 300 | 960 | 20～1000 | 45 | 13115×6740×5580 | 122800 |
| QC11Y-12×2500 | 0.5°-2.5° | 6-15 | 100 | 900 | 10～800 | 18.5 | 3430×2460×2576 | 9358 |
| QC11Y-12×3200 | 0.5°-2.5° | 6-15 | 100 | 900 | 10～1000 | 18.5 | 3950×2300×2550 | 11500 |
| QC11Y-12×4000 | 0.5°-2.5° | 7-14 | 100 | 810 | 10～1000 | 22 | 4610×2867×2641 | 14000 |
| QC11Y-12×5000 | 0.5°-2.5° | 7-14 | 100 | 890 | 10～1000 | 22 | 5655×3570×2841 | 20150 |
| QC11Y-12×6000 | 0.5°-3° | 7-14 | 100 | 890 | 10～1000 | 37 | 7230×2740×3840 | 39000 |
| QC11Y-12×7200 | 0.5°-2.5° | 10-20 | 100 | 900 | 10～1000 | 45 | 8000×3910×3750 | 55150 |
| QC11Y-12×8000 | 0.5°-2.5° | 10-20 | 100 | 900 | 10～1000 | 45 | 8950×3910×3760 | 60100 |
| QC11Y-13×2500 | 0.5°-2.5° | 6-15 | 100 | 900 | 10～1000 | 18.5 | 3430X2725X2575 | 9800 |
| QC11Y-13×3200 | 0.5°-2.5° | 6-15 | 100 | 900 | 10-1000 | 18.5 | 3810X3060X2546 | 11500 |
| QC11Y-13×6000 | 0.5°-3° | 7-14 | 300 | 800 | 10-1000 | 37 | 7035×2740×3825 | 39300 |
| QC11Y-13×7000 | 0.5°-3° | 7-14 | 300 | 1000 | 10-1000 | 37 | 8370×3900×3825 | 45000 |
| QC11Y-13×8000 | 0.5°-2.5° | 5-10 | 300 | 850 | 10-1000 | 55 | 8950×2710×3060 | 6400 |
| QC11Y-13×9000 | 0.5°-2.5° | 5-10 | 300 | 850 | 10-1000 | 55 | 11450×7310×3760 | 76500 |
| QC11Y-13×12000 | 0.5°-2° | 4-10 | 100 | 960 | 10-800 | 2×45 | 13275×5470×6610 | 16600 |
| QC11Y-14×12000 | 0.5°-2° | 4-10 | 100 | 960 | 10-800 | 2×45 | 13275×5470×6610 | 16600 |
| QC11Y-16×2500 | 0.5°-2.5° | 7-10 | 100 | 810 | 10-1000 | 22 | 3220×2753×2675 | 13400 |
| QC11Y-16×3200 | 0.5°-2.5° | 7-15 | 100 | 810 | 10-1000 | 30 | 3930×2985×2810 | 15300 |
| QC11Y-16×4000 | 0.5°-2.5° | 7-15 | 100 | 950 | 10-1000 | 30 | 4905×3142×2580 | 20630 |
| QC11Y-16×5000 | 0.5°-2.5° | 7-15 | 100 | 970 | 10-1000 | 45 | 5928×3845×2848 | 30800 |
| QC11Y-16×6000 | 0.5°-2.5° | 6-15 | 100 | 1000 | 10-1000 | 45 | 6952×2540×2820 | 42050 |
| QC11Y-16×7000 | 0.5°-2.5° | 8～16 | 100 | 1000 | 10～1000 | 45 | 8050×2580×3535 | 52750 |
| QC11Y-16×8000 | 0.5°-2.5° | 4～10 | 100 | 890 | 10～1000 | 45 | 9378×3545×4882 | 98860 |
| QC11Y-16×9000 | 0.5°-2.5° | 4～8 | 100 | 890 | 10～1000 | 55 | 11110×7860×4982 | 106600 |
| QC11Y-16×10000 | 0.5°-2.5° | 4～8 | 300 | 900 | 20～1000 | 55 | 11870×7728×5322 | 119288 |
| QC11Y-16×12000 | 0.5°-2.5° | 4～8 | 100 | 900 | 20～1000 | 2×45 | 13873×6255×6800 | 187000 |
| QC11Y-20×2500 | 0.5°-3° | 9-18 | 100 | 1000 | 20～1000 | 37 | 3640×3915×3240 | 22500 |
| QC11Y-20×3200 | 0.5°-3° | 7-14 | 100 | 1000 | 20～1000 | 37 | 4340×3915×3040 | 24000 |
| QC11Y-20×4000 | 0.5°-3° | 5-10 | 100 | 1000 | 20～1000 | 37 | 5070×3320×3150 | 27382 |
| QC11Y-20×6200 | 0.5°-3° | 4-8 | 100 | 1000 | 20～1000 | 55 | 7438×2673×3875 | 58000 |
| QC11Y-20×8200 | 0.5°-3° | 4-8 | 100 | 1000 | 20～1000 | 55 | 9976×7680×4631 | 100000 |
| QC11Y-25×2500 | 0.5°-3 ° | 7～15 | 100 | 1000 | 20～1000 | 45 | 4690×3458×3235 | 22600 |
| QC11Y-25×3200 | 0.5°-3 ° | 6～12 | 100 | 1000 | 20～1000 | 45 | 5390×3458×3235 | 26500 |
| QC11Y-25×4000 | 0.5°-3 ° | 5～10 | 100 | 1000 | 20～1000 | 45 | 6190×3458×3235 | 29500 |
| QC11Y-25×6200 | 0.5°-3° | 3-6 | 100 | 1000 | 20～1000 | 55 | 9335×5750×3930 | 61000 |
| QC11Y-32×3200 | 0.5°-3.5 ° | 6-14 | 100 | 1000 | 20～1000 | 2×45 | 4310×2516×3583 | 37500 |
| QC11Y-35×3000 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20～1000 | 2×55 | 8311×3010×4092 | 51380 |
| QC11Y-35×3500 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20～1000 | 2×55 | 9019×3900×4062 | 57127 |
| QC11Y-35×4000 | 0.5°-3.5 ° | 5-10 | 100 | 1000 | 20～1000 | 2×55 | 10336×3900×4092 | 61500 |
