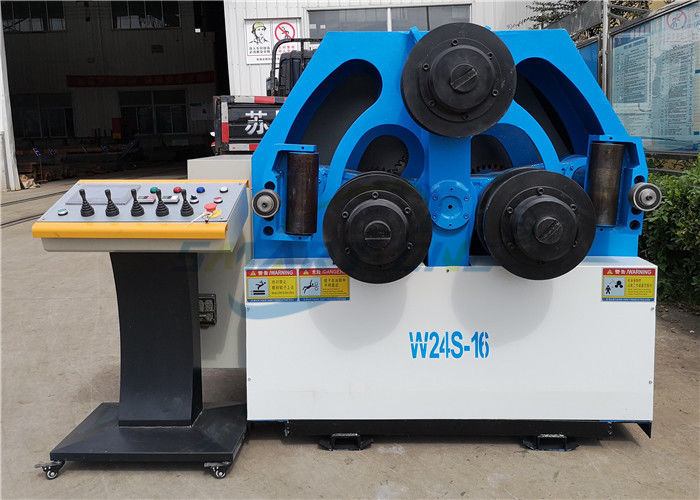

W24S Series Profile Bending Machine/Section Bending Machine
This profile bending machine is a high efficiency equipment used to bend all kinds of profiles such as angle,channel,I-beam,flat bar,square tube,tube,pipe and so on.Once feeding then finish bending and pre-bending.It is widely in petrol, chemical, shipyard, metal working and machine manufacturing industries.
1. Full hydraulic transmission,electrical centralize control,digital read out,once feeding without return to finish bending and pre-bending and other process.
2. Top roller fixed,two bottom roller move by arc lifting around a fixed center.they can rising and falling separately also can rising and falling at the same time.
3. Three drive rolls mounted with hydraulic motor,without slipping,even for thinner material can be bent.
4. Side guide rollers to ensure the high quality for asymmetrical section bending.
5. Full function,replace the mold,various profile can be bent.
6. Vertical and horizontal optional.
7. NC or CNC can optional by customer.
8. CE certificate.
This machine is made up of bed, side roller, supporting roller, transmission, hydraulic system, electrical part and dies.
It adopts the arc 3-roller Profile Bending Machine from Swedish ROUND Corporation.
It has pre-bending function.
Three working rollers are all main driving rollers driven by hydraulic motors, gear.
The 2 bottom rollers rotate around a fixed center take-off and landing movement of arcs.
The profile bending machine is a special device that can bend various kinds of profiles into arc workpieces.
This three roller symmetrical bending machinery adopts vertical or horizontal structure. It is extensively used in petroleum, chemical, shipbuilding, water and electricity ,metal structure, machinery manufacturing, ect. profile bending machine mainly consists of bed, lower roll. Carrier roller, mechanical transmission parts, electrical parts,hydraulic system, mould, and so on, in addition to this three roller symmetrical bending machinery , our company also offers CNC profile bending machine.
