Place of Origin: | China |
---|---|
Brand Name: | SMART CNC |
Certification: | CE,ISO,TUV |
Model Number: | W24S-45 |
Minimum Order Quantity: | 1 sets |
Price: | 9000-15000 USD |
Packaging Details: | Wooden case |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 sets/months |
Machine Type: | Roller-Bending Machine | Condition: | New |
---|---|---|---|
Power: | CNC | Material / Metal Processed: | Aluminum,Carbon Steel,Stainless Steel |
Raw Material: | Sheet / Plate Rolling,PIPE,Steel Bar | Automation: | Automatic |
High Light: | Cnc Beam Profile Bending Machine,6m/Min Profile Bending Machine,750mm Profile Bending Machine |

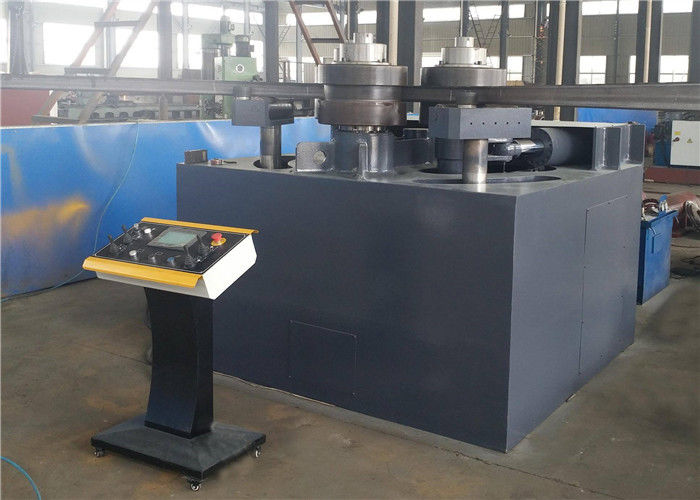

Section Bending Machine Profile Bending Machine H-Beam U-Beam Angle Steel Pipe Square
This section bending machine is high-efficient process equipment used to bend angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on. One time feeding can complete rolling round and corrective round working procedure, it is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and other business lines.
Upper roller of the machine is main drive roller with support rollers set on the two sides. It’s controlled by the electrical equipment, half hydraulic pressure drive.
This machine which is of advanced structure, reliable operation and complete in function is sophisticated Profile form equipment in domestic and abroad.
1. Standard Equipment:
2. Safety Equipment:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Parameters and character
Technical Parameter | W24S(WY24-) | ||||||
6 | 16 | 30 | 45 | 75 | 100 | ||
Maximum bending section modulus profiles | 6 | 16 | 30 | 45 | 75 | 100 | |
Plate speed(m/min) | 6 | 5 | |||||
Profiles yield limit(mpa) | 250 | ||||||
Within the bend angle steel | maximum cross-section(mm) | 40*5 | 70*8 | 80*8 | 90*10 | 100*10 | 120*12 |
Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | |
Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 40*5 | |
Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 | |
Bent outward angle steel | maximum cross-section(mm) | 50*5 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 |
Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | |
Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 45*5 | |
Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 | |
Channel steel bent outward | Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 | |
Within the curved channel steel | maximum cross-section(mm) | 8 | 12 | 16 | 20 | 25 | 28 |
Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
Flat steel flat bending | maximum cross-section(mm) | 100/18 | 150*25 | 180*25 | 200*30 | 220*40 | 250*40 |
Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
Flat steel vertical bending | maximum cross-section(mm) | 50*12 | 75*16 | 90*20 | 100*25 | 110*40 | 120*40 |
Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | |
Round tube bending | maximum cross-section(mm) | 42*4 | 76*4.5 | 89*5 | 89*8 | 114*5 | 159*5 |
Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | |
Round steel bending | maximum cross-section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 | |
Square tube bending | maximum cross-section(mm) | 45*3 | 60*4 | 70*4 | 80*6 | 90*8 | 100*10 |
Minimum bending diameter(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 |
