Smart CNC not only produce Press Brake, Laser Machine,Shear, Rolling Machine, also supply other complete sheet metal machine solution.
| Place of Origin: | China |
|---|---|
| Brand Name: | SMART CNC |
| Certification: | CE ISO TUV |
| Model Number: | WE67K-400/4000 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 35 days |
| Supply Ability: | 50 SET/Month |
| Controller: | Delem | Pressure: | 4000KN |
|---|---|---|---|
| Length: | 4000mm | Axis: | 4axis |
| Speed: | 200mm/s | Weight: | 20000kgs |
| Motor: | Siemens | Types: | Hydraulic |
| Highlight: | cnc bending machine,automatic bending machine |
||

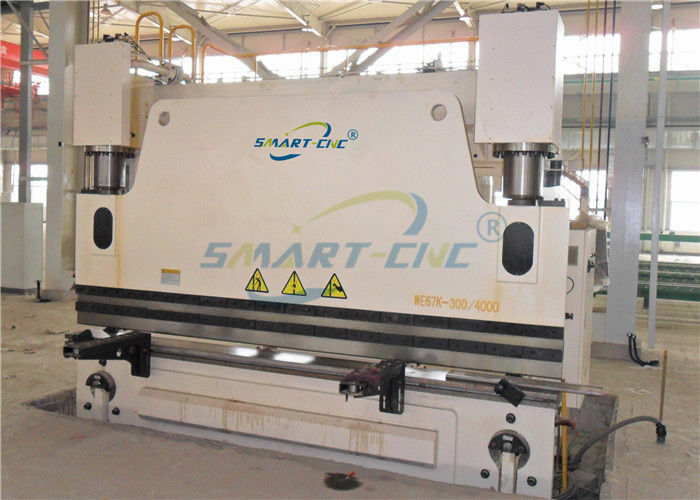

400Ton 4m Heavy Duty CNC Hydraulic Press Brake Machine China For 16mm Thickness Mild Steel
MAIN FEATURE: (SMART CNC Press brake bending machine)
Main Features
1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life.
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
WE67K-400/4000 CNC Electric hydraulic Servo Proportional CNC Hydraulic Press Brake
The standard accessories are in the below:
1. Anchor bolt
2. Hex nut
3. Seal ring
4. Gasket
5. Grease gun
6. Allen wrench
7. Foot switch
8. Front support arms
9. Electrical box key, control panel key
10. Operation manuals
Main Specification
|
Type
Name |
WE67K-63/2500 WE67K-80/2500 |
WE67K- 100/3200 100/4000 |
WE67K- 160/3200 160/4000 |
WE67K- 200/3200 200/4000 |
WE67K- 250/3200 250/4000 250/5000 250/6000 |
WE67K- 300/3200 300/4000 300/5000 300/6000 |
WE67K- 400/4000 400/5000 400/6000 400/7000 |
|
| Nominal pressure(KN) |
630 800 |
1000 | 1600 | 2000 | 2500 | 3000 | 4000 | |
| Length of table(mm) | 2500 |
3200 4000 |
3200 4000 |
3200 4000 |
3200 4000 5000 6000 |
3200 4000 5000 6000 |
4000 5000 6000 7000 |
|
| Width of table (mm) | 150 | 160 | 250 | 250 | 250 | 250 | 250 | |
|
Distance between uprights (mm)
|
2100 |
2600 3200 |
2600 3100 |
2600 3100 |
2600 3200 4000 4800 |
2600 3200 4000 4800 |
3200 4000 4800 5100 |
|
| Throat depth (mm) | 250 | 320 | 320 | 320 | 320 | 350 | 400 | |
| Ram stroke (mm) | 100 | 100 | 200 | 200 | 250 | 250 | 320 | |
| Max. open height(mm) | 320 | 320 | 425 | 450 | 500 | 520 | 630 | |
|
Ram speed |
Approaching (mm/s) | 200 | 180 | 160 | 150 | 120 | 100 | 90 |
|
Working (mm/s)
|
8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 7-10 | |
|
Returning (mm/s)
|
150 | 140 | 120 | 100 | 90 | 80 | 60 | |
| Main motor power (KW) |
5.5 7.5 |
7.5 | 15 | 15 | 18.5 | 22 | 30 | |
|
Overall dimensions |
Length(mm)
|
2500 2584 |
3340 4084 |
3300 4100 |
3310 4100 |
3350 4150 5150 6150 |
3400 4200 5200 6200 |
4400 5400 6400 7400 |
| Width(mm) |
1720 1850 |
1885 | 1950 | 1950 | 2145 | 2150 | 2450 | |
| Height(mm) |
2160 2210 |
2510 | 2750 | 2750 | 3120 | 3500 | 3655 | |
|
Weight(kg)
|
5000 5600 |
8500 9500 |
11000 13000 |
11500 13500 |
18000 20500 24000 27000 |
23000 24000 26000 30000 |
30000 35000 40000 45000 |
|
|
Type
Name |
500/4000 500/5000 500/6000 500/7000 |
650/5000 650/6000 650/7000 650/8000 |
800/6000 800/7000 800/8000 800/10000 |
1000/6000 1000/7000 1000/8000 1000/10000 |
1200/6000 1200/7000 1200/8000 1200/10000 |
1600/7000 1600/8000 1600/10000 1600/12000 |
2000/8000 2000/10000 |
|
| Nominal pressure(KN) | 5000 | 6500 | 8000 | 10000 | 12000 | 16000 | 20000 | |
| Length of table(mm) |
4000 5000 6000 7000 |
5000 6000 7000 8000 |
6000 7000 8000 10000 |
6000 7000 8000 10000 |
6000 7000 8000 10000 |
7000 8000 10000 12000 |
8000 10000 |
|
| Width of table (mm) | 400 | 400 | 550 | 550 | 550 | 550 | 800 | |
|
Distance between uprights (mm)
|
3200 4000 4800 5100 |
4000 4800 5100 6100 |
4800 5100 6100 7800 |
4800 5100 6100 7800 |
4800 5100 6100 7800 |
5100 6100 7800 9100 |
6200 8000 |
|
| Throat depth (mm) | 400 | 500 | 500 | 600 | 600 | 600 | 800 | |
| Ram stroke(mm) | 350 | 320 | 400 | 400 | 400 | 400 | 400 | |
| Max. open height(mm) | 630 | 650 | 820 | 920 | 920 | 920 | 1500 | |
|
Ram speed |
Approaching (mm/s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
|
Working (mm/s)
|
7 | 7 | 7 | 6 | 6 | 6 | 6 | |
|
Returning (mm/s)
|
55 | 55 | 55 | 45 | 45 | 45 | 54 | |
| Main motor power (KW) | 37 | 45 | 55 | 2×37 | 2×45 | 2×55 | 2×55 | |
|
Overall dimensions |
Length(mm)
|
4500 5500 6500 7500 |
5500 6500 7500 8500 |
6500 7500 8500 10500 |
6500 7500 8500 10500 |
6500 7500 8500 10500 |
7500 8500 10500 12500 |
8500 10450 |
|
Width (mm) |
2700 | 3075 | 3400 | 3500 | 3600 | 3660 | 4480 | |
| Height(mm) | 4400 | 4500 | 5300 | 5370 | 5750 | 5950 | 6500 | |
|
Weight(kg)
|
45000 47000 56000 62000 |
60000 65000 70000 76000 |
96000 105000 116000 130000 |
110000 120000 136000 165000 |
132000 144000 156000 180000 |
160000 195000 230000 260000 |
240000 260000 |
|
