Wuxi Smart CNC Equipment Group Co.,LTD
“Quality First, Customer First”
Smart CNC not only produce Press Brake, Laser Machine,Shear, Rolling Machine, also supply other complete sheet metal machine solution.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SMART CNC |
| Certification: | CE, ISO, TUV |
| Model Number: | WC67Y/K-80T |
| Minimum Order Quantity: | 1 set |
| Price: | USD3650~USD98500 |
| Packaging Details: | Standard Export Packaging |
| Delivery Time: | 35-40 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/months |
| Slider Stroke (mm): | 300mm | Throat Depth (mm): | 400mm |
|---|---|---|---|
| Length Of Working Table (mm): | 2500mm | Condition: | New |
| Brand Name: | SMART CNC | Weight (KG): | 3500 |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Width Of Working Table (mm): | 130mm |
| Extra Services: | Machining | Motor Power (kw): | 5.5KW |
| Warranty: | 2 Years | After Warranty Service: | Online Support |
| High Light: | 80T Steel Plate Bending Machine,Metal Working Hydraulic Press Brake,Hydraulic Steel Sheet Bending Machine |
||

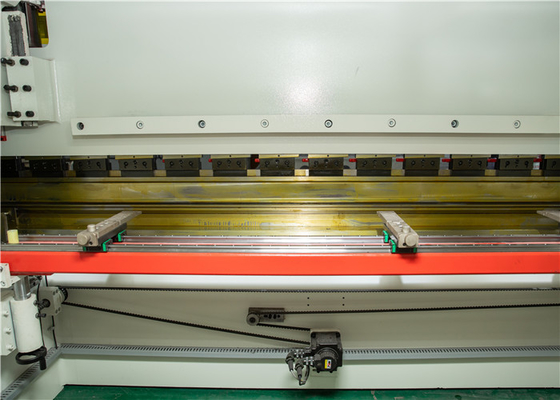

WC67Y/K NC 80T Metal Steel Sheet Plate Bending Machine Hydraulic Press Brake For Metal Working
Products Description
Bending machine is the use of the mold (general or special mold) to bend the cold metal sheet into various geometric sections of the workpiece. 1.The main mechanical structure of a machine tool is composed of frame, column, slider, worktable, main cylinder, back carrier and other parts. Through finite element analysis and optimization design by three-dimensional software, the structure strength and rigidity of each main component can be fully ensured.
2.Internal stress of welded parts can be eliminated by tempering and vibration aging.
3.The oil cylinders fitted on both sides adopt closed loop control mode which is composed of Germany electro-hydraulic servo valve and imported grating ruler, breaking through the stroke control mode of traditional mechanical stop bending machine, ensuring the high precision of the glide position, the accurate and stable operation, the high precision of bending.
Specifications
Configurations
Application
The folded sheet metal bending machine has high productivity and high working accuracy, using different shapes of up and down mould, can be bent into various shapes artifacts, slider stroke at a time can be to a bending forming of sheet metal, after a lot of bending can be achieved relatively complex shape workpiece, when equipped with the corresponding equipment, can also make a punch.
Features
1.Standard two axis control (X.Y).
2.Mechanical torque synchronization(torsion bar).
3.The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, ensure machine high strength and good rigidity.
4.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of slider, and installed with digital display device, easy and quick for operator.
5.Quick clamping is equipped,it is convenient for operator to install and get offer punch.
